STRING GAME OF LIGHT Lighting installation by Guojian HU

Home > Winners > #62695


DESIGN DETAILS
DESIGN NAME:
STRING GAME OF LIGHT

PRIMARY FUNCTION:
Lighting installation

INSPIRATION:
String game is one of the most popular games all over the world. In China, people often play string game with friends and children. The game teaches them how to cooperate with each other and is enjoyable to play. The lighting concept comes from string game to highlight the commitment to collaboration of two districts in the future. In Chinese traditional string game, two people need to play with each other to make string figure.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

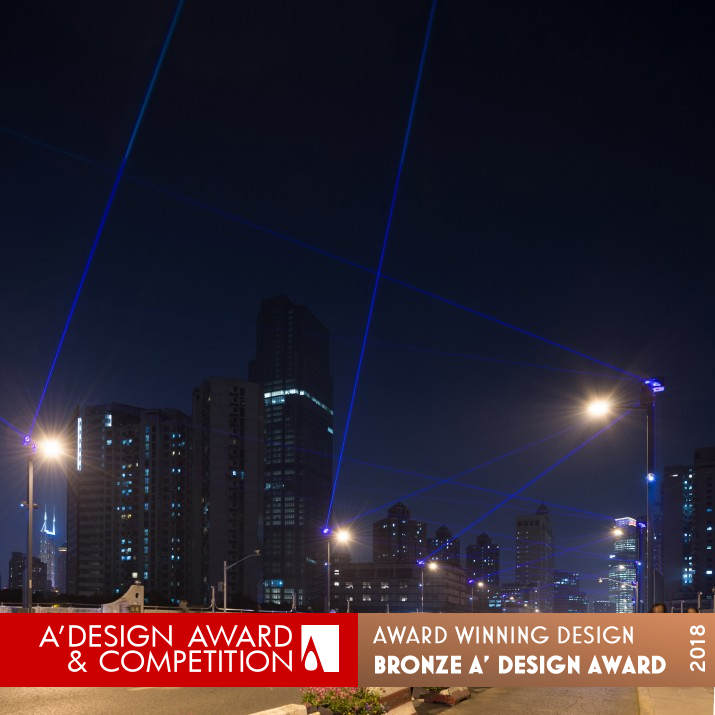

Jing'an District and Zhabei District, are located in the center of Shanghai, China. At the end of 2015, it was announced that the two districts were to be merged into a new district. To commemorate this event, the government wanted to build a unique installation at the junction of two districts, as a symbol of unity and cooperation. A lighting installation builds an illusion of strings connecting the top of road lighting poles, redefining a new landscape space over Hengfeng Road Bridge at night.

OPERATION / FLOW / INTERACTION:
-

PROJECT DURATION AND LOCATION:
The project started from October 2017 to September 2017 in Shanghai, China

FITS BEST INTO CATEGORY:
Lighting Products and Lighting Projects Design

PRODUCTION / REALIZATION TECHNOLOGY:
The light installation is separated into three parts, the generator, the optical reflector and the receiver. The generator is installed at the base of road lighting pole for easily maintenance. Two laser light beams are generated at the base and go through a pipe fixed on the pole with an opening covered with tempered glass. The pipe is helpful to keep people from touching the laser for safety. The reflector is made from mirrors to change the direction of lasers in an accurate way to get to the receivers on the other poles. The intense energy of the laser easily causes glare and light pollution. A receiver, which is an empty triangle box covered with black louvers, is carefully designed to minimize the reflective glare, and at the same time all the beam directions are fixed, eventually reaching the receiving box precisely. Three parts are integrated into a road lighting pole. All the old road poles are replaced by the new ones without occupying any more space which was an important requirement from the client. Fixed direction of light and well-set louvers avoid the glare and light pollution.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Height 7000mm

TAGS:
LIGHTING INSTALLATION, STRING GAME OF LIGHT

RESEARCH ABSTRACT:
-

CHALLENGE:
Laser light is the best technical way to display the strings of light according to the concept. Initially the laser light generators were going to be located at the top of the poles. The size and weight was a big concern for the installation. After extensive research our design team solved this problem using an innovative solution. Optical mirror is applied to change direction of laser and the location of the laser generator which being put at the bottom of the pole.

ADDED DATE:
2017-12-17 16:06:08

TEAM MEMBERS (4) :
Guojian Hu, Jinqi Ying, Xi Xu and Jianquan Sang

IMAGE CREDITS:
Guojian HU, 2017.

PATENTS/COPYRIGHTS:
Copyrights belong to Guojian Hu, 2017

Visit the following page to learn more: http://mp.weixin.qq.com/s?__biz=MjM5NTgyNzkzM Q==&mid=2697763
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Greening and City Appearance Administration of Jing'an District, Shanghai, China

PROFILE:
About the client Shanghai Jing'an District Greening and City Appearance Administration is a department of the district government responsible for coordinating the external appearance management and exerting administrative function of greening, as well as the comprehensive management of city appearance and environmental sanitation of the district.

NOMINATION DETAILS

String Game of Light Lighting Installation by Guojian Hu is a Nominee in Lighting Products and Lighting Projects Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Guojian HU when results are announced.
AWARD DETAILS

String Game of Light Lighting Installation by Guojian Hu is Winner in Lighting Products and Lighting Projects Design Category, 2017 - 2018.
