Pool House Residential by Priyanka Khanna and Rudraksh Charan

Home > Winners > #53073




DESIGN DETAILS
DESIGN NAME:
Pool House

PRIMARY FUNCTION:
Residential

INSPIRATION:
Inspiration- “PEBBLE IN THE GRASS” Response to the context in terms of the existing architecture:- a post modern building constructed in exposed concrete about 20 years old.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

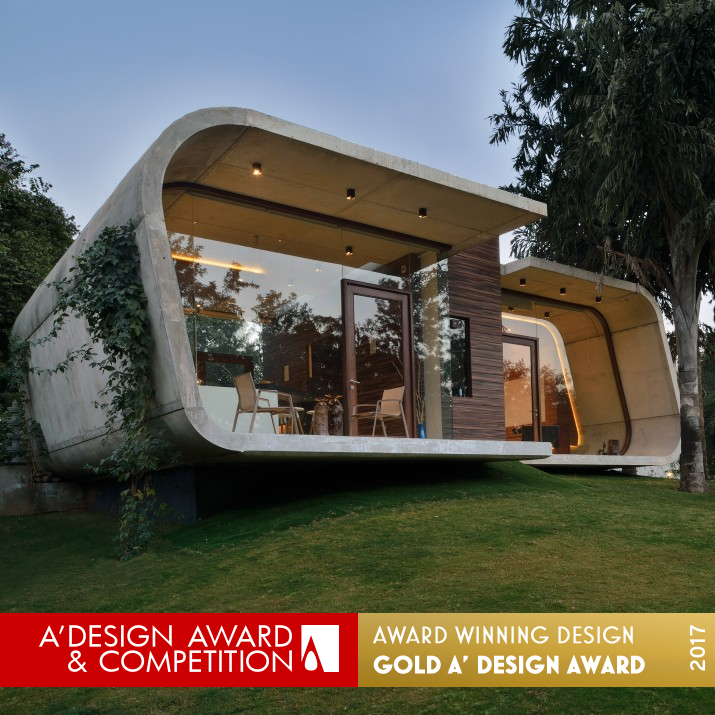

It was primarily an extension of the existing house to accommodate a home theater, lounge, pool, changing room, a gym and addition of two suites with dressers and toilets Building is like an object or a sculpture not bound by any classical archetypal or conventional construction system. The form is just like a natural peal from the landscape. The pool house is overlooking the green, its perched, the construction system is shell based.

OPERATION / FLOW / INTERACTION:
It's an all concrete shell construction, no beams, no columns just a wrapping shell in concrete. The floor is the same concrete polished. It has no plaster / paint / waterproofing or finishing render. The interiors a bare with just a single block cladded in wood internally and externally housing a toilet and a pantry. The toilet is finished in terrazzo cast in-situ, the concrete used is a designed mix without any artificial pigments and enhancers. We wanted the concrete to breathe and weather naturally.

PROJECT DURATION AND LOCATION:
The project started in April 2012 in New Delhi and ended in January 2015

FITS BEST INTO CATEGORY:
Architecture, Building and Structure Design

PRODUCTION / REALIZATION TECHNOLOGY:
The entire building is an example of minimalism, every unwanted thing is either concealed / embedded or invisible:- This required extreme Detailing at a principal level :Designing shuttering to hold an inclined RCC wall weighing 8.5 Tons: we made a proper unit like a 3D frame to hold the weight of concrete, Getting fair faced concrete good enough to be able to handle polishing on the floor. Designing wooden frames in a curved section with wooden doors surrounded by glass on all sides: this was an experiment where we developed a freestanding wooden door frame. The toilet is finished in singular in-situ terrazzo, we had to get masons from eastern UP who work on doubly curved terrazzo surfaces.

SPECIFICATIONS / TECHNICAL PROPERTIES:
4500 sq ft of total built up area, in which the home theater and lounge of 2000 sq ft, the changing room and gym in 600 sq ft and 1250 sq ft for two suites with dresser and toilets.

TAGS:
42mm, Indian Architecture, Concrete, Residential, Minimal, Shell Structure

RESEARCH ABSTRACT:
Building is like an object / a sculpture not bound by any classical archetypal or conventional construction system. The form is just like a natural peal from the landscape, The pool house is overlooking the green, its perched, the construction system is shell based so cantilevering the block was not a challenge, imagine the unit to be like a sliced section of a pipe its so strong in it self due to prestress that minor stresses and strains are inconsequential. In theory the building had to be a very bold statement for it to read as an object, so we decided to keep it very singular in its form and finish. The softening of its edges and the tilt were a result of trying to blend this stark object with the scape, imagine a lone pebble in the grass. It looks distinct / beautiful and yet blends in.• In order to align with the architectural vocabulary the interior design had to be singular as well. The wooden paneling forms a floating media unit completely concealing all the devices and screen, this how ever is reciprocated with a curved panel on the other side defining the seating space with the island bar.

CHALLENGE:
The entire building is an example of minimalism, every unwanted thing is either concealed / embedded or invisible:- This required extreme Detailing at a principal level.

ADDED DATE:
2017-02-03 06:05:04

TEAM MEMBERS (3) :
Priyanka Khanna , Rudraksh Charan and Jayant Sahoo

IMAGE CREDITS:
Image#1: Photographer Ravi Kanade.
Image#2: Photographer Ravi Kanade.
Image#3: Photographer Ravi Kanade.
Image#4: Photographer Ravi Kanade.
Image#5: Photographer Ravi Kanade.

PATENTS/COPYRIGHTS:
Copyrights belong to 42mm

Visit the following page to learn more: http://www.42mm.in


CLIENT/STUDIO/BRAND DETAILS
NAME:
42mm Architecture

PROFILE:
Established in 2005, 42mm is multi-disciplinary practice specializing in architecture, interior design, urban design and master planning. Driven by the desire to depart from conventional models, Firm is constantly at work on research, development and implementation of innovative and efficient design strategies, operations and details. 42mm emphasizes on understanding the end-user in relation to its environment, the social and cultural context. Through a collaborative approach and comprehensive consultation process 42mm responds to requirements, commercial environments, technical processes and practices, resulting in the optimum design solution. Additionally firm maintains a strong commitment to create design solutions that are individually tailored to suit the specific criteria for each project. The Design Process for each project evolves from a detailed analysis of its Function and User in relation to its site and its social and cultural context. Firm has received several Architectural and design awards including the Indian Institute of interior designers (IIID) in 2015, Artist in concrete award in national category and Designer of Tomorrow award by Kohler & Abraxas. The firm was also listed in Hot-100 India’s top trendsetting Architects and designers –by Architects & Interiors India-2016.



NOMINATION DETAILS

Pool House Residential by Priyanka Khanna and Rudraksh Charan is a Nominee in Architecture, Building and Structure Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Priyanka Khanna and Rudraksh Charan when results are announced.


AWARD DETAILS

Pool House Residential by Priyanka Khanna and Rudraksh Charan is Winner in Architecture, Building and Structure Design Category, 2016 - 2017.



· Press Members: Login or Register to request an exclusive interview with Priyanka Khanna and Rudraksh Charan.

· Click here to register inorder to view the profile and other works by Priyanka Khanna and Rudraksh Charan.
