Gapi Food and Beverage Villa by Lotfi Sidirahal

Home > Winners > #40357


DESIGN DETAILS
DESIGN NAME:
Gapi

PRIMARY FUNCTION:
Food and Beverage Villa

INSPIRATION:
The Concept is the Pastry box ribbons, that are usually twisted when trying to confine the cake box. The twist's dynamic is used to create a double skin facade that adapts to the different uses and orientations.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

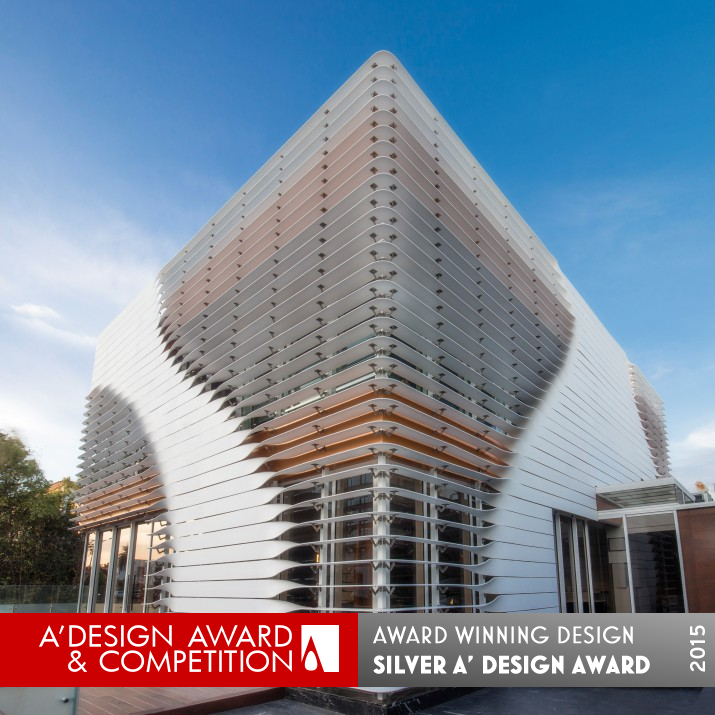

Food and Beverage Villa consisting of a large catering kitchen in the basement, a pastry shop/ tea room on the ground floor, and a gourmet restaurant on the first floor; The architect designed a contemporary building inspired by the packaging ribbons of cake boxes; With the use of Krion (thermoformable synthetic marble), the architect designed a double skin facade of an intense white, light and see-through. The horizontal blades which envelop the 3 main facades rotate at 90 degrees depending on intimacy and sun orientation.

OPERATION / FLOW / INTERACTION:
-

PROJECT DURATION AND LOCATION:
Project is located in Casablanca, Construction started in January 2014 and finished in February 2015.

FITS BEST INTO CATEGORY:
Architecture, Building and Structure Design

PRODUCTION / REALIZATION TECHNOLOGY:
Double Skin facade in Krion comprising blades of 250 mm height. Two modules of Krion have been used: one straight and one twisted, both 1200mm x 250mm. The modules are later welded using Krion Glue. Unique Inox compass have been designed to fix the double skin to the structure. The first Skin is designed in Glass and Bronze Alucobon.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Plot area: 550 m2 Total GFA : 950 m2 Building Height: 8m Number of floors: 3

TAGS:
ribbons, krion, sensual design, double skin facade, corten

RESEARCH ABSTRACT:
First challenge was to design a sensual and dynamic skin with the less number of different modules in order to minimize the budget and simplify the manufacturing. Two modules were designed: one straight blade and one twisted. It required production of 3 different moulds and a dozen prototypes. Second Research axis was to design a universal mounting piece that allows vertical or side entry installation and especially when fixation is required on the twisted part. Several prototypes were manufactured with different shapes and principles before designing the stainless steel compass

CHALLENGE:
Designing a facade that has never been experimented before.

ADDED DATE:
2015-02-28 22:00:10

TEAM MEMBERS (2) :
Lotfi Sidirahal: Creative Director and Stephane Vaclroze: Design Manager

IMAGE CREDITS:
All Photos provided are credit to Valentina Marchant Photographer

Visit the following page to learn more: http://www.lotfisidirahal.com
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
GAPI

PROFILE:
GAPI is a luxury catering company based in Casablanca. Since its creation in 1997, GAPI is continuously innovating in the world of Catering and gastronomy. Rewarded for its mastery of decoration in the Events Exhibition in 2011, GAPI inaugurates today its "Villa" designed by Lotfi Sidirahal to present its gourmet and original creations.

NOMINATION DETAILS

Gapi Food and Beverage Villa by Lotfi Sidirahal is a Nominee in Architecture, Building and Structure Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Lotfi Sidirahal when results are announced.
AWARD DETAILS

Gapi Food and Beverage Villa by Lotfi Sidirahal is Winner in Architecture, Building and Structure Design Category, 2014 - 2015.



· Press Members: Login or Register to request an exclusive interview with Lotfi Sidirahal.

· Click here to register inorder to view the profile and other works by Lotfi Sidirahal.
