DESIGN NAME: Village Hall
PRIMARY FUNCTION: Public Multifunctional Building
INSPIRATION: In traditional Chinese housing, the main hall called ‘Ting Tang’ is the most important family space for public activities. It usually has a formal architectural gesture, with tall, dark and semi open space.
Inspired by this, the village center is considered as the ‘main hall’ for the whole village. Besides a multifunction hall for formal public activities, the building also provides lots of open spaces to encourage social interaction between villagers and tourists.

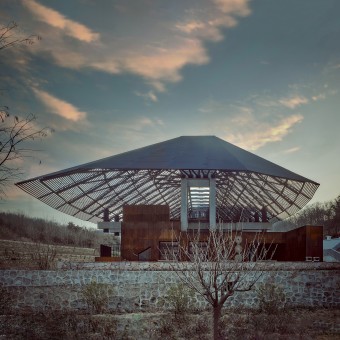

UNIQUE PROPERTIES / PROJECT DESCRIPTION: The building intentionally avoids the vernacular architectural style, and applies modern materials and structure. A big floating roof unifies the formal and informal spaces in a simple way, like a giant open umbrella.
In order to achieve the floating and light feeling, the big steel roof not only needs to overcome the large cantilevers and spans, but also needs to keep member as slender as possible. With several structural innovations, a hybrid structure mimics umbrella cantilevers are formed.
OPERATION / FLOW / INTERACTION: This is a public event centre building, capable of meeting the daily needs of meetings, exhibitions, receptions and other
meeting, exhibition, reception and other daily needs.
PROJECT DURATION AND LOCATION: The project started in 2021 in China and finished in 2023 in China, and the project address is Xiangtang Village, Pukou District, Nanjing City, Jiangsu Province
FITS BEST INTO CATEGORY: Architecture, Building and Structure Design
|
PRODUCTION / REALIZATION TECHNOLOGY: Weathering steel plate
Steel
Concrete
A hybrid structure mimics umbrella cantilevers
SPECIFICATIONS / TECHNICAL PROPERTIES: The building area is 1370 square metres
TAGS: Multi functional, rural social center, flexible space, cantilevered roof, structural innovation
RESEARCH ABSTRACT: Based on the Grasshopper plugin extension tool on the Rhino platform, Karamba3D force analysis and form finding technology were used to explore the tools and paths suitable for architects to carry out structural form design in the scheme stage, and successfully completed the structural form design of asymmetric complex roof shapes.
CHALLENGE: In order to realise the sense of floating of the big black roof, the building is structurally innovative. The roof, as an overall stress system, not only has to overcome the difficulties of large overhangs and spans, but also has to make each rod as slim as possible to maximise the sense of lightness and composition of the rod structure.
ADDED DATE: 2024-07-26 15:38:56
TEAM MEMBERS (1) : Youpei Hu;Lei Shen;Qi Wang;Shufan Wu;Yuanyuan Rui
IMAGE CREDITS: Youpei Hu, 2024.
|
