The Kaleidoscope Office and Residence by Inrestudio |
Home > Winners > #142543 |
 |
|
||||
| DESIGN DETAILS | |||||

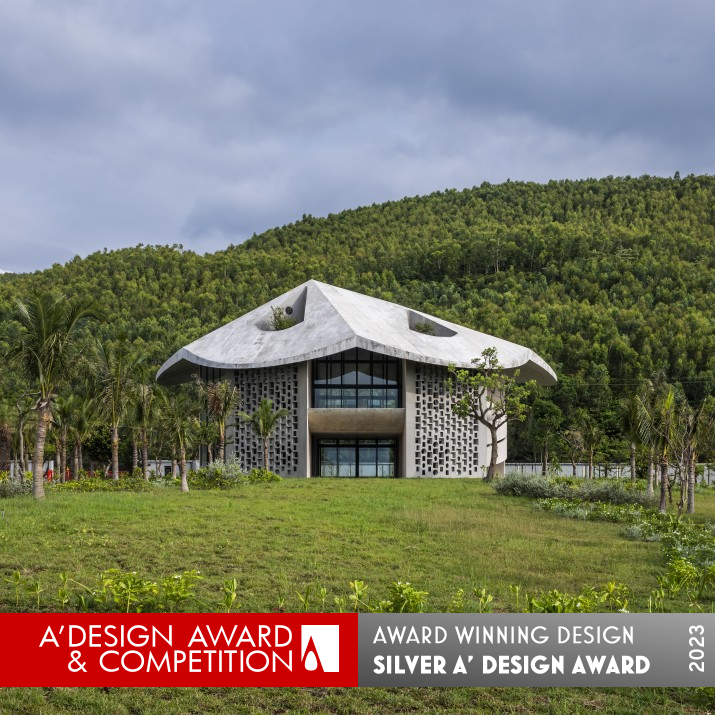

| DESIGN NAME: The Kaleidoscope PRIMARY FUNCTION: Office and Residence INSPIRATION: The characteristic roof of the building inherits the idea of Non La, a Vietnamese traditional farmer’s hat made of palm leaf, that a large conical surface shuts out sunlight and rain while allowing for the wind underneath. In order to enhance the natural ventilation, solid walls are arranged perpendicularly to the roof periphery. These form a series of V-shapes to cut out triangular private rooms while defining a large in-between space that is used for the public functions. UNIQUE PROPERTIES / PROJECT DESCRIPTION: The Kaleidoscope is the living and working building located at a factory site in central Vietnam. The surrounding region is well known for its severe climate: a hot wind blows in the dry season and typhoons and floods during the rainy season. The building is placed between the hill and the sea, and frames a series of diverse (kaleidoscopic) views in directions and times. The project aims at creating a protected space from the harsh tropical climate, and enhancing the user’s contact with nature. OPERATION / FLOW / INTERACTION: Located in a remote area, the building provides both living and working spaces for the users. Under a single roof, various functions of the building are organized by seven triangular volumes that defines private and common spaces. The inside of the volumes accommodates closed functions such as bedrooms and private offices, while the space between the volumes holds gathering functions such as the central office and parlors. PROJECT DURATION AND LOCATION: The project design was started in 2017 in Saigon and the construction was completed in 2022 in Quang Binh, Vietnam. FITS BEST INTO CATEGORY: Architecture, Building and Structure Design |
PRODUCTION / REALIZATION TECHNOLOGY: Perforated ventilation blocks are common building elements in tropical regions to moderate environmental factors. Custom precast ventilation blocks compose the outer surfaces of the solid volumes to provide privacy to the inner rooms. These fiber-reinforced concrete blocks have larger dimensions (500 x 500mm) than usual (200 x 200mm), and match the grand scale of the surrounding backdrop. The hollow precast blocks were interlocked on site by pouring concrete into their cavities. SPECIFICATIONS / TECHNICAL PROPERTIES: The roof plan fits into a 32,330mm diameter circle, while the building measures 15,250mm high. Major specifications are listed below. Roof: trowel-finished mortar Ceiling: exposed concrete (public spaces) / paint (private rooms) Exterior wall: trowel-finished mortar, fiber-reinforced concrete block Interior wall: stucco (public spaces), paint (private rooms) Exterior floor: terrazzo (2F) / washout concrete (1F) Interior floor: solid wood, terrazzo (public spaces) / ceramic tile (private rooms) TAGS: Vietnamese architecture, tropical architecture, rural architecture, concrete architecture, sustainable architecture, office building, residential building, open building, passive energy, non la RESEARCH ABSTRACT: In Vietnam, there are many office buildings that only import the style of modern office buildings but fail to adapt it to the local climate. These buildings apply large glass surfaces on their flat facade and, as is often the case, office workers close the blinds throughout working hours to block the strong sunlight. The Kaleidoscope is one of a series of projects called Tropical Office Projects, which aims at discovering location-specific design languages for modern office buildings. CHALLENGE: The project was realized after a 5-year long process in an outlying region of Vietnam. The construction was carried out by a mixed team of experienced builders from Saigon, the largest city in Vietnam, and local barely experienced farmer-builders. The process was characterized by numerous moments of deliberate procedures and impromptu solutions, contributing to the evolution of the local workmanship and offering a window into the potential of rural construction. ADDED DATE: 2022-06-28 05:56:07 TEAM MEMBERS (2) : Nguyen Quynh Han and Vo Hanh Nhan IMAGE CREDITS: #1: Photographer Hiroyuki Oki, non-title, 2022 #2: Photographer Hiroyuki Oki, non-title, 2022 #3: Photographer Hiroyuki Oki, non-title, 2022 #4: Photographer Hiroyuki Oki, non-title, 2022 #5: Photographer Hiroyuki Oki, non-title, 2022 |
||||
| Visit the following page to learn more: https://www.inrestudio.com/the-kaleidosc |
|||||
| CLIENT/STUDIO/BRAND DETAILS | |
 |
NAME: Hoang Long Mineral JSC PROFILE: Hoang Long Mineral Joint Stock Company was established in 2006. Started by exploiting and exporting raw titanium in Quang Binh Province in Vietnam, the company’s business has been grown continuously to increase the capacity of mining and finally to add a refining process of the domestically exploited titanium whose products meet the international standards. |
| AWARD DETAILS | |
 |
The Kaleidoscope Office and Residence by Inrestudio is Winner in Architecture, Building and Structure Design Category, 2022 - 2023.· Press Members: Login or Register to request an exclusive interview with Inrestudio. · Click here to register inorder to view the profile and other works by Inrestudio. |
