Saltatur Furniture by Masoud Akbarzadeh

Home > Winners > #99680


DESIGN DETAILS
DESIGN NAME:
Saltatur

PRIMARY FUNCTION:
Furniture

INSPIRATION:
The project has been inspired by the works of Gaudi and extends his works to a three-dimensional compression and tension combined system of forces in the form of a long span table. The structural form has been inspired by the Greco-Roman wrestling technique, Salto, which includes lifting, returning, and taking down an opponent to the mat. The geometry of the table lifts the glass top, rotates, and transfers the loads to the ground. The word 'salto' means 'to dance' in Latin. The name of our structure is Saltatur, which means 'a dancer' in Latin.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

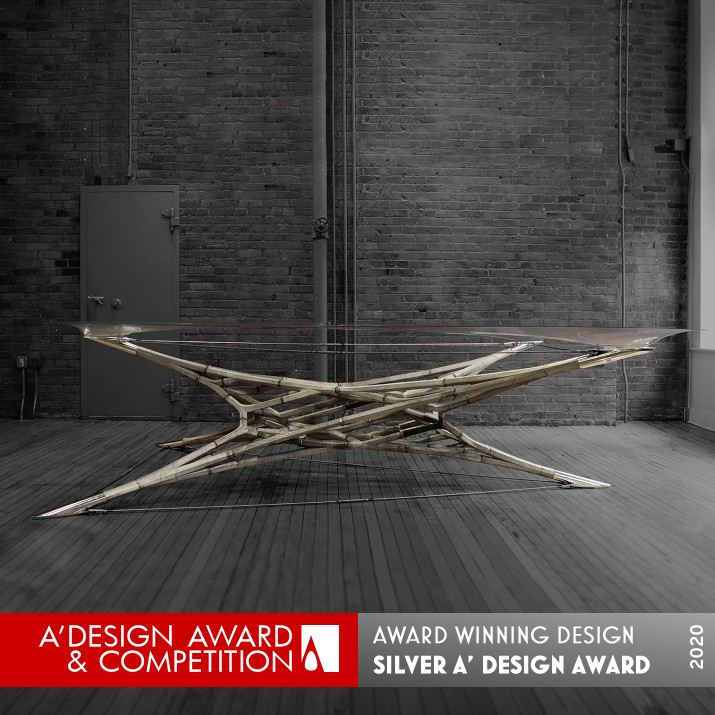

The Saltatur demonstrates innovative research in the design and fabrication of a prefab, discrete, spatial composite structure consisting of a spatial, compression-only concrete body, post-tensioning steel rods, and an ultra-thin glass structure on its top in the form of long-span furniture. Using discrete spatial systems would minimize the volume of concrete and the carbon footprint while preserving the necessary mass for structural performance and specific architectural detailing.

OPERATION / FLOW / INTERACTION:
The Saltator is an ensemble of compression and tension forces held in a twisted configuration of equilibrium. The geometry of the structure was inspired by the Greco-Roman wrestling technique, Salto. The word 'salto' means 'to dance' in Latin, which also inspired the name of the furniture, Saltatur, 'a dancer' in Latin. The form was designed using the geometry-based method of 3D graphic statics. The structure shows how we can minimize the volume of construction materials and reduce the carbon footprint of a structure while preserving the necessary mass for structural performance.

PROJECT DURATION AND LOCATION:
2 years, Weitzman School of Design, University of Pennsylvania

PRODUCTION / REALIZATION TECHNOLOGY:
There are multiple design innovations in various phases of the realization of this project, from conceptual structural design to fabrication. The structural form of the project was developed using 3D/polyhedral graphic statics with a very particular control over the magnitude of the horizontal forces in the system. As a result, the entire concrete body of the structure is held in compression by the tension ties at the top and bottom of the structure with no horizontal reactions at the supports.

SPECIFICATIONS / TECHNICAL PROPERTIES:
195 cm (W) x 308 cm (L) x 90 cm (H)

TAGS:
composite, ultra thin spatial concrete, design for reassembly, funicular structures

RESEARCH ABSTRACT:
The structural form of the furniture was designed using a newly developed method of 3D Graphic Statics, which is the extension of the existing 2D methods proposed in 1864. A node-based assembly was considered as a method of construction. An innovative detailing was developed that allowed fixing the members in their exact locations in the structure to avoid the possible spatial collision of the branches of the nodes during the assembly. The ultra-thin glass structure on the top was formed into a funicular geometry as a three-hinged discrete arch spanning 3.75 meters.

CHALLENGE:
Challenges include the concrete casting of complex 3d nodes, detail development that can allow for easy assembly and disassembly, ultra thin (4mm) glass top spanning 3 meters to support the applied loads and its self-weight.

ADDED DATE:
2020-02-19 21:04:38

TEAM MEMBERS (1) :
Masoud Akbarzadeh, Ali Tabatabaei Ghomi, Mohammad Bolhassani, Mostafa Akbari, Alireza Seyedahmadian, Konstantinos Papalexiou, Jingchu Sun, Hanqing Yao.

IMAGE CREDITS:
Copyright: Polyhedral Structures Laboratory
Image credit: Polyhedral Structures Laboratory

Visit the following page to learn more: http://not available yet
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Polyhedral Structure Laboratory

PROFILE:
PSL is an interdisciplinary research lab connecting architecture, structural engineering, computer science, mathematics, and material science to enrich architectural geometry and to reconcile function, form, and technology. PSL aims to bridge the gap between architecture and structural design using geometry, which is considered the common language between these two inextricable disciplines. At PSL we intend to push the boundaries of research in the field of architectural technology, and we are continually looking for teams and individuals to interact with across various academic disciplines.
