Adam's Leaf Urinal Screen by Michael Jones and Sadie Mestman |
Home > Winners > #94377 |
 |
|
||||
| DESIGN DETAILS | |||||

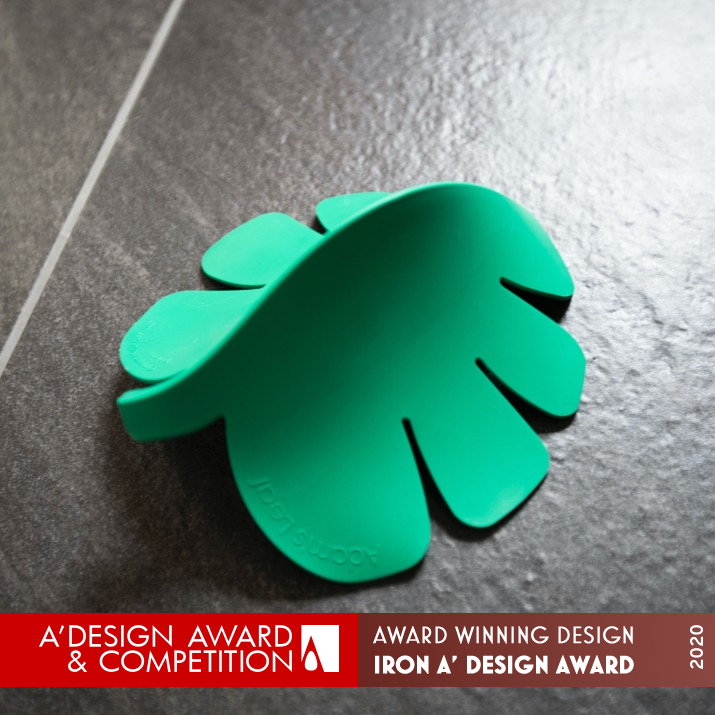

| DESIGN NAME: Adam's Leaf PRIMARY FUNCTION: Urinal Screen INSPIRATION: Adam's Leaf was inspired by the need to improve men's bathroom hygiene and takes its shape from fig leaves strategically painted in Renaissance and Pre-Renaissance art. The high fin-like center and angled leaf edges facilitate the flow of fluid off the leaf without splash back onto the user and surrounding floor, and its unusual design helps the urinal user stay focused over the urinal longer to completely finish the process also improving restroom hygiene. UNIQUE PROPERTIES / PROJECT DESCRIPTION: Adam's Leaf is a uniquely designed men's urinal screen that effectively prevents urine splash-back for the user and keeps restroom floors clean to improve hygiene. It is biodegradable, and its design deflects the urine stream without splash or retention of urine in the urinal eliminating the need for added scents. It fits virtually any size urinal and its durability, up to six months, helps reduce material and janitorial labor costs. OPERATION / FLOW / INTERACTION: It will function in any position in a men's urinal except when inverted-(upside down) and weighs enough not be moved by water from urinal flushing. PROJECT DURATION AND LOCATION: The project idea was conceived in 2006 and the design completed after numerous prototypes and patented in 2016. |
PRODUCTION / REALIZATION TECHNOLOGY: Adam's Leaf is produced by high pressure injection molding using recycled plastic and EcoPure which facilitates its biodegration post-use. SPECIFICATIONS / TECHNICAL PROPERTIES: Adam's Leaf has dimensions of: 180mm. length, 170mm. width, 80mm. height, and weighs 114.76 grams. TAGS: It is leaf-shaped with a narrow high center ridge designed to deflect fluid RESEARCH ABSTRACT: Numerous prototypes were made including clay models and early 3D printed models to achieve a successful design and also several plastic formulations were trialed to achieve the correct Shore hardness and composition to allow moderate flexibility but shape retention to remain effective. EcoPure was added to enhance biodegradation post-use. CHALLENGE: The project was time consuming as a variety of materials and shapes were trialed to achieve a workable and durable design that was both pleasing to the eye and effective. The cost of creating an injection mold and the various trial models were expensive along with the intellectual property legal costs. ADDED DATE: 2019-11-16 23:57:22 TEAM MEMBERS (2) : Michael Jones and Sadie Mestman IMAGE CREDITS: Still photos of Adam's Leaf were taken by Andrew Lachance, Omaha, Nebraska. Videos were created by Michael Jones, Omaha, Nebraska. PATENTS/COPYRIGHTS: US patent-US D773,016 S November 29, 2016, patent holder, Custom Hygienics, LLC., Inventor, Michael Jones Omaha, Nebraska, USA. US Trademark Registration No. 5,885,710, October 15, 2019 ADAM'S LEAF owned by Custom Hygienics, LLC. |
||||
| Visit the following page to learn more: http://adamsleaf.com | |||||
| CLIENT/STUDIO/BRAND DETAILS | |
 |
NAME: Custom Hygienics, LLC. PROFILE: The product is unique and effective in stopping back-splash of micro droplets of urine from men's urinals which reduces the risk of personal contamination and contamination to the surrounding area in men's bathrooms. Its design produces fluid flow in a downward manner and is made from a biodegradable material using recycled materials. |
| AWARD DETAILS | |
 |
Adam's Leaf Urinal Screen by Michael Jones and Sadie Mestman is Winner in Bathroom Furniture and Sanitary Ware Design Category, 2019 - 2020.· Press Members: Login or Register to request an exclusive interview with Michael Jones and Sadie Mestman. · Click here to register inorder to view the profile and other works by Michael Jones and Sadie Mestman. |
