Nexo On Board Unit by Murat Armagan

Home > Winners > #72440


DESIGN DETAILS
DESIGN NAME:
Nexo

PRIMARY FUNCTION:
On Board Unit

INSPIRATION:
To create an all-in-one device we brought together all the possible on board payment methods from NFC card readers to ticket printers, to QR code reader for electronic or printed tickets, plus the driver console with a user-friendly interface. The adjustable console makes the product appropriate for various types of vehicles. Our work includes every phase from design research to engineering to bring the most enhanced experience, fit compactly for today's and future's buses.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

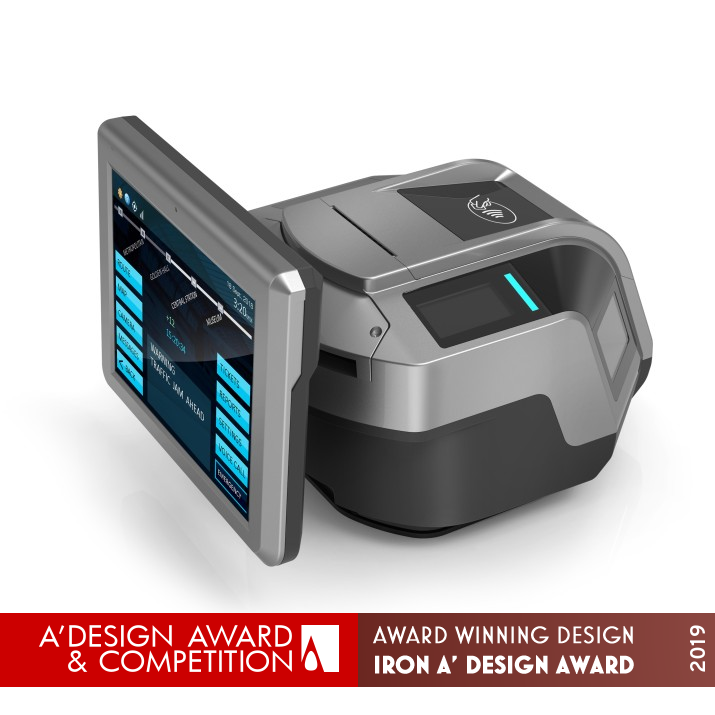

Nexo combines the bus driver console with a complete multi purpose fare collection management device for on board payments. The driver has the ability to adjust the screen position both on X and Y axis for optimum comfort, regardless of the mounting position on every vehicle. Beyond the ergonomic consideration, the symmetrical design allows global use, whether in a country with right side driver seat or left.

OPERATION / FLOW / INTERACTION:
This product operates either as a supervisor of all on-board equipment or as a stand-alone device. The rider can buy and print tickets, show bank cards or pass cards, show electornic or printed ticket with QR code. The driver can control the Automatic Vehicle Location and Real Time Passenger information functionalities. Driver can adjust the position on x and y axis for better ergonomics, regardless of the mounting position on every vehicle. It can be used both in left or right side driver vehicles due to symmetric design.

PROJECT DURATION AND LOCATION:
The Project started on June 2017 and on December 2017 it moved to the engineering phase. On March 2018 the first prototype was built and on July 2018 the product was in serial production. All of this took place in Istanbul, Turkey.

PRODUCTION / REALIZATION TECHNOLOGY:
The material used for the case is PC-ABS shaped with plastic injection method. The internal card components were brought together with metal sheet bending methods. The whole case and component engineering was done by our agency.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Ergonomic design adjustable to driver’s position Robust PC ABS material for automotive equipmentDimensions: Height 243mm, Width 255mm, Depth 295mm Protection IP54 excluding paper slot IP33 Mounted on lockable aluminum holder Enclosure color according to customer demand Weight approx. 4Kg

TAGS:
public, technologies, adjustable, multi-functional, all in one, on board unit, driver console, robust, engineering

RESEARCH ABSTRACT:
Market analysis and field research were implemented in order to define user needs. It was seen that there were two main devices on the bus for the driver and the riders that were separate because different types of vehicles would need different placements. We were able to create an innovative multi functional device that combines these features. Moreover, multiple ways of on board payment methods were built in together as different riders required alternative methods of payment.

CHALLENGE:
Combining two different devices in a way that would fit different types of vehicles was the main challenge. Bringing together different payment methods in a symmetrical way was again an innovation that we had to work for in especially the engineering process. Another aspect to take into consideration was the continuous vibration in the bus, effecting usage. The robust adjustable product was the result.

ADDED DATE:
2018-11-09 12:09:46

TEAM MEMBERS (1) :
Murat Armağan

IMAGE CREDITS:
Murat Armagan, 2018.

Visit the following page to learn more: http://goo.gl/T6nh5T
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Amco

PROFILE:
Amco Advanced Technologies is a leading provider of Mobility systems as well as Electronic Information Display Systems. Amco has the know-how to design a whole system from scratch and deliver products which fully comply with international quality standards to ensure 24-hour unintermittent operation, seven days a week even under severe weather conditions.These products distinguish themselves with their attractive design, low operation cost and exceptionally long life-cycle.

NOMINATION DETAILS

Nexo On Board Unit by Murat Armagan is a Nominee in Digital and Electronic Devices Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· The profile and other works by Murat Armagan is also kept secret. This information will also be available later.
AWARD DETAILS

Nexo On Board Unit by Murat Armagan is Winner in Digital and Electronic Devices Design Category, 2018 - 2019.



· Press Members: Login or Register to request an exclusive interview with Murat Armagan.

· Click here to view the profile and other works by Murat Armagan.
