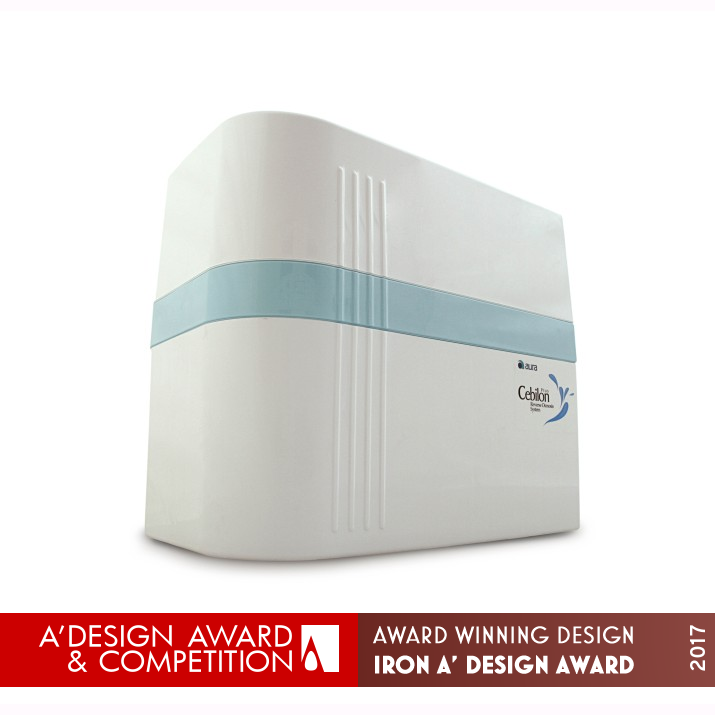

Auar Cebilon Plus ICM Rexwat Water Purifier by Asst. Prof. Ömer Kamber

Home > Winners > #51285


DESIGN DETAILS
DESIGN NAME:
Auar Cebilon Plus ICM Rexwat

PRIMARY FUNCTION:
Water Purifier

INSPIRATION:
These systems take up a lot of space under the sink because storage tank is outside of the devices. So they don’t seem elegant. Also there can be water leakages in these devices. In these devices filter changes are too difficult. In peers filter material mounted to the stable filter housings in the devices so hands of worker or technical services touch to the filter material on the product line or technical service. In these devices there can be mold formation since there is no air hole.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:
It produces drinking water, is more compact with interior storage tank. Access to filters and filter change are very easy with removable covers and special filter design. It has five filtration stages. Our filters are more hygienic according to its peers. Because there is no hand touching to the filter materials in the production line. In the case of water leakage, our product closes the water inlet and prevents flood. Our device has ventilation holes in order to prevent formation of molds.

OPERATION / FLOW / INTERACTION:
The product have 5 filtration stage. A sediment filter to trap big particles, granule activated carbon filter to trap organic chemicals and chlorine, block carbon filter to trap organic chemicals and chlorine and carbon dust that may escape from the second stage, reverse osmosis membrane to remove many types of molecules and ions from water, including bacteria, mineralized post carbon filter remove remaining tastes and odors from the product water, adds healthy minerals to the water.

PROJECT DURATION AND LOCATION:
The Project started in July 2016 in Isatnbul, Turkey and finished in September 2016 in Istanbul, Turkey an was exhibited in Canton Fair in 2016.

FITS BEST INTO CATEGORY:
Home Appliances Design

PRODUCTION / REALIZATION TECHNOLOGY:
We use plastic injection to produce plastic parts. They are produced with masterbatch. The filter housings and caps are fixed to each other with spin and ultrasonic welding in our devices. We use sticker for labeling. Our device has a pressure pump that need 24 VDC electricity. Also it doesn’t work when our storage tank is filled. So it is energy saving.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Its dimensions are Width 270 mm x Depth 400 mm x Height 385 mm. Its weight is 12.5 kg.

TAGS:
Reverse Osmosis, Water Treatment, Undercounter, Residential, Healthy and Delicious Water

RESEARCH ABSTRACT:
Totally, we have over 90 distributors in our country and in the world. We got informations about what their customers demand with making meetings with our distributors. And we made improvements on our previous device according to what the customers demanded. And our device got positive feedbacks after entering the market.

CHALLENGE:
The hardest part of this design is to fit all the filters and parts into the device that has these dimensions. Also it was hard to ensure the watertightness of the filter housings which were made by spin and ultrasonic welding machines. We overcame of this difficulty by making improvement on the plastic parts and changing machine settings.

ADDED DATE:
2016-10-19 08:40:02

TEAM MEMBERS (5) :
Asst. Prof. Ömer Kamber, Haydar Uğur, Bilal Özsarıkaya, Alim İğneci and Hakan Maden

IMAGE CREDITS:
Asst. Prof. Ömer Kamber, 2016.

Visit the following page to learn more: http://www.iea.com.tr
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
İhlas Ev Aletleri İmalat Sanayi ve Ticaret A.Ş.

PROFILE:
Ihlas Home Appliances has been serving in goods and service production in its production complex, which has 15.000 m² closed area. Our company meets the major part of the domestic demand as a market leader in cleaning robots, watertreatment devices and instant water heaters by producing these products. Ihlas Home Appliances offers its household products for appreciation of its customers with Ihlas, Aura and Ora brands. Exporting more than 30 countries including Russia, Germany, Hungary, Greece, Portugal, Italy, Poland, Cameroon and South Africa, our company has obtained a remarkable progress by realizing exportation performance in 2003 and 2004. All products of our company are marketed by Ihlas Marketing, the distributor company, with a widespread agency network and selling channels.

NOMINATION DETAILS

Auar Cebilon Plus Icm Rexwat Water Purifier by Asst. Prof. Ömer Kamber is a Nominee in Home Appliances Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Asst. Prof. Ömer Kamber when results are announced.
AWARD DETAILS

Auar Cebilon Plus Icm Rexwat Water Purifier by Asst. Prof. Ömer Kamber is Winner in Home Appliances Design Category, 2016 - 2017.



· Press Members: Login or Register to request an exclusive interview with Asst. Prof. Ömer Kamber.

· Click here to register inorder to view the profile and other works by Asst. Prof. Ömer Kamber.
