Shaparak interactive hybrid model
Recreating what happens in real life was the best inspiration of this project. Showing transfer course in a metaphorical way - Calculation and final result.
UNIQUE PROPERTIES / PROJECT DESCRIPTION:
Model(Interactive) Shaparak company activity course of action
For better understanding of the electronic bank payment model and adding this model to the other bank departments, It was presented in nine different scenarios using interactive info graphics, charts and slides in two accessibility categories ( user access and manager access ). It was animated and programmed and presented on four LED panels.
OPERATION / FLOW / INTERACTION:
the instructions were designed in an All in one computer stand that is sent to the main computer and it is shown on the main panel.
It is user friendly and the interface is appealing to the eye so it won't bring up any confusions.
PROJECT DURATION AND LOCATION:
The project started in April 2014 in Tehran and finished in August 2015 in Tehran.
PRODUCTION / REALIZATION TECHNOLOGY:
At first, the graphics were designed using Adobe Illustrator program and the animations were built using After effects and using the Unity program it all came together.
Modeling the table and the connections were built in the Solid works program and a Iron structure was established to help the cooling process. The base materials are made from steal.
The acrylic materials were modeled in 3D MAX and Auto cad and after laser cutting it was assembled.
One powerful computer - One all in one - Four Samsung LFD panels - Four tablets and a speaker.
SPECIFICATIONS / TECHNICAL PROPERTIES:
Width 2200 mm x Depth 1440 mm x Height 880 mm
Interactive Design, Product Design, Innovation Design,interactive model,scale model,mehregan tarh
The main research was based on the user's accounts and their bank cards. What they do became a scenario and between the probable scenarios the best were chosen became under many reviews under programming and engineering departments.
After writing the program, The animation was made and it got to the final result.
A model like this was never built in this country.
It gives the user easy access to an ample of information.
It was designed so the user becomes free of distractions.
In minimum time, it gives a good view of the course of use.
Charts and information gets automatically updated.
It has the option of receiving information and controlling the model using the tablets next to the main base.
Different surfaces were designed with information for the user to seek if needed.
Complicated performances like lighting in an acrylic base.
Extremely well built table.
High data processing computers.
Overheating problems and electronic fanning.
Unable to reach under the table.
A movable stand to better match the user.
TEAM MEMBERS (11) :
Mohammad Bagher Farzam, Creative Director, Adel Farzam,model maker , Tina Yaraghi ,model maker, Ali Salem, Programmer , Erfan Soltani, Animator , Amirhesam Mirsadeghi, Animator , Hadis Rashvand, Photographer , Mostafa Arvand, Product Designer, negar radfar, Graphic designer, Ali Farzam,animator and ania foladi, designer

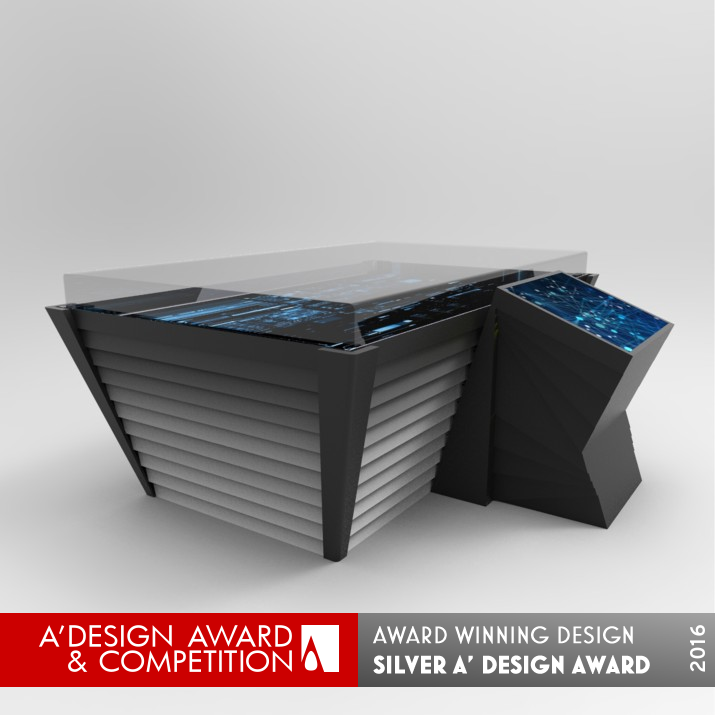

Image #1: Photographer Hadis Rashvand, Variations, 2015.
Image #2: Photographer Hadis Rashvand, Variations, 2015.
Image #3: Photographer Hadis Rashvand, Variations, 2015.
Image #4: Photographer Hadis Rashvand, Variations, 2015.
Image #5: Photographer Hadis Rashvand, Variations, 2015.
Video Credits: Amirhesam Mirsadeghi,2105
