| DESIGN DETAILS |
DESIGN NAME:

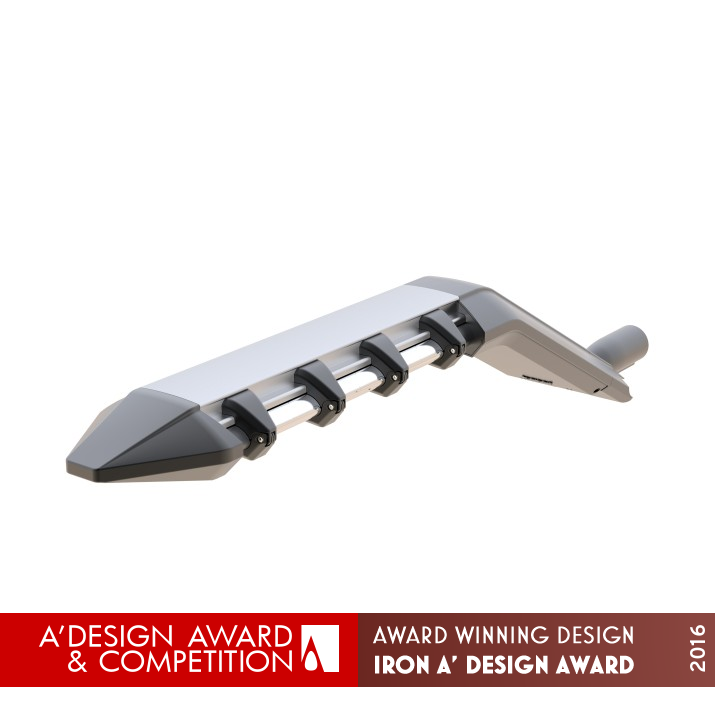

Wave
PRIMARY FUNCTION:
LED Lighting System
INSPIRATION:
In order to employ Milestone LED modules, Wave Lighting System is developed as an optimized solution that can answer different needs and situations. The dynamic and aggressive form suggests a modern look combined with high performance.
UNIQUE PROPERTIES / PROJECT DESCRIPTION:
Created for outdoor lighting, Wave LED Lighting System incorporates Milestone modules within. The modular design allows flexible lighting design that includes different numbers of modules and sizes. The lighting system is comprised of 2, 3 or 4 LED modules within same body and chassis parts. Size change is enabled by an aluminum profile design that is cut to length. In this sense, Wave is a new generation lighting fixture that is optimized for industrial production and sustainable use of materials and resources.
OPERATION / FLOW / INTERACTION:
Wave provides lighting solutions for ME, ME2 and ME3 specifications. Maintenance and change of modules are easy with the clips on the body as there is no need to break the product apart. The electrification system is isolated at the back of the product and accessed through its compartment. The product has IP66 protection and electric shock protection (auto switching the power off when it is opened).
PROJECT DURATION AND LOCATION:
The project was completed in 2016, Ankara, Turkey.
FITS BEST INTO CATEGORY:
Lighting Products and Fixtures Design
|
PRODUCTION / REALIZATION TECHNOLOGY:
The product is mainly made of aluminum, yet some components allow the production from composite materials as well. Body parts are made of injection molded corrosion resistant aluminum, whereas main chassis is an aluminum extrusion profile. Therefore, different sized extruded bodies are combined with standard components to create varied products. Milestone v2 LED modules are also die-cast aluminum components that offer flexibility in illumination and energy use. Pole joint is made of die-cast aluminum and has five different angular positions for adjustability on different curved poles.
SPECIFICATIONS / TECHNICAL PROPERTIES:
210 mm x 290 mm x 1070 / 1210 / 1350 mm.
TAGS:
LED Lighting, Lighting Fixture, Lighting Luminaire, Outdoor Luminaire, Outdoor Lighting, Modular Lighting, Modular Lighting System
RESEARCH ABSTRACT:
The distribution of heat and reduction of wind load was studied through the form finding and refining processes. Thermal management is improved as the product will be used in harsh climate conditions where there are radical heat differences between day and night.
CHALLENGE:
Main challenge was to create a thin and modern looking product that reflects the high performance LED lighting systems inside with high quality production and material use.
ADDED DATE:
2016-02-24 13:11:47
TEAM MEMBERS (1) :
Designnobis for Heper+Moonlight.
IMAGE CREDITS:
Image courtesy of Designnobis.
|
|
| CLIENT/STUDIO/BRAND DETAILS |
 |
NAME:
Heper Moonlight
PROFILE:
Heper Moonlight, a leading company in professional outdoor lighting from Turkey, was founded in 1994. Our product range is functional thanks to their design and technology, which makes Heper Moonlight a great solution for both residential and urban areas. With products sold throughout over 70 countries worldwide, Heper Moonlight is the supplier for all professional outdoor lighting needs. Heper Moonlight designs new lighting systems, as well as renovating existing systems to give them renewed life and flexibility. We examine the end user’s objectives and intended use of the venue, which helps establishing the lighting system and requirements, and provide detailed informaiton. We highly appreciate the respect shown by our customers and business associates. With the precious support of our customers, we will continue to convert our business into success together with a steady and positive image of Heper Moonlight both in the markets and in the countries we work.
|
|
|
|
