Enter the Dragon Chandelier by Bureau V

Home > Winners > #44326


DESIGN DETAILS
DESIGN NAME:
Enter the Dragon

PRIMARY FUNCTION:
Chandelier

INSPIRATION:
Our interest was in combining materials and forms that challenge and play with sensorial undertones of luxury, coarseness and commercialism embedded within them. As this fixture functions as both luminary and art object, it was also important that it be energy-efficient and long-lasting. Neon proved to be an ideal medium through which we circumscribed the aforementioned contrasts between high and low while providing the primary luminary for the fixture.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

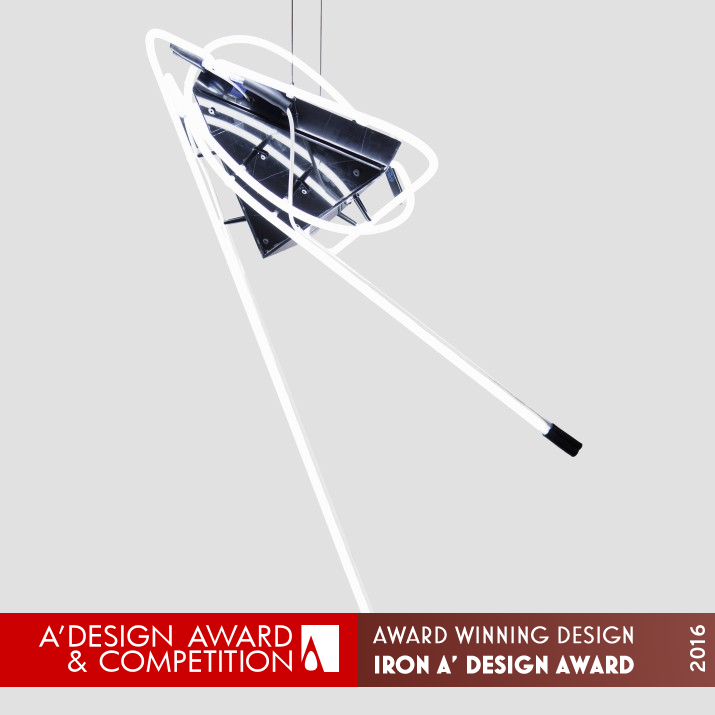

Enter the dragon consists of a black marble tetrahedral shape wrapped in warm white neon. The project operates as a collage of the formal and material tropes, as classic signifiers of wealth and power (the chandelier, the pyramid, and figured marble) are recontextualized, defaced, and framed by callow squiggles of a pop-commercial material. Its silhouette morphs as one moves around the fixture, its delicate white extensions piercing the space around it.

OPERATION / FLOW / INTERACTION:
To create the equivalent of a low-light and high-light setting for this fixture, we provided the fixture with 2 different circuits which light different portions of the fixture. These were all wired within the body of the marble shape in which all the transformers required for the fixture are housed.

PROJECT DURATION AND LOCATION:
The project was developed from 2014-2015 and finished by the end of 2015. Two of these fixtures currently hang in National Sawdust, a new chamber music hall in Williamsburg, Brooklyn that opened to critical acclaim last October.

FITS BEST INTO CATEGORY:
Lighting Products and Lighting Projects Design

PRODUCTION / REALIZATION TECHNOLOGY:
The chandelier is fabricated with a mixture of marble, neon, glass and steel.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Dimensions: 15.83" x 12.18" x 49.20" Lamps: 8mm cold cathode (neon) tubes, 3500 Kelvin white. Aproximate light output 800 lumens a meter, (4 Meters of tube) aprox 3200 lumens/ Power consumption: 150 watts.

TAGS:
chandelier, neon, marble, bureauv, lighting, design

RESEARCH ABSTRACT:
We explored different types of lighting possible with a special emphasis on energy-efficient fixtures including fluorescent, LED and neon. We simultaneously designed the fixture and came upon the idea to treat the luminaire less as an arrangement of lamps, but as a line that wraps around a core, a suspended scribble that is structured yet flowing. The challenge was in achieving the complex shape of our design with 360 degree illumination. Neon was best suited for this purpose given its ability to retain a rigid continuous form and complex bent shapes with minimal mechanical supports.

CHALLENGE:
The biggest challenge we had to face as designers was in the dismantling of a complex three dimensional neon shape into components that the neon technicians could psychically produce within budget. The three dimensional design was reduced to two dimensional components using software that allowed us to projection map close approximations of the 3d shapes into 2d shapes which we then laid out as a template for the fabricator to reproduce in their neon bending. This worked out great because we simultaneously solved the problem of creating the 3d bends while breaking up the shape to allow for returns to the transformers at appropriate intervals. Neon is a medium that has a beautiful range of visual effects depending on the gas that is used. We went through several iterations in which we tested light output against a range of environments. We worked with a locally based fabricator specialized in neon, and their participation was instrumental in our ability to calibrate our design to create a fixture that captures our original design while creating a reproducible object.

ADDED DATE:
2016-01-11 22:20:53

TEAM MEMBERS (1) :


IMAGE CREDITS:
Bureau V, 2015.

Visit the following page to learn more: http://www.bureauv.com/enter-the-dragon
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Bureau V

PROFILE:
Bureau V is a Brooklyn-based design studio led by Stella Lee, Laura Trevino and Peter Zuspan. Its projects range from cultural and commercial buildings to performances, installations, and events. The studio's work often falls on the border of architecture. It includes collaborative performances, such as an ongoing series of spatial sound installations with the musician Arto Lindsay, which has included performances at the Venice Biennale of Art and Musée d'Art Moderne de la Ville de Paris; and Eye to Eye, a piece conceived and performed at the Guggenheim Museum over two days with the art collective Assume Vivid Astro Focus. Bureau V has designed and fabricated a series of fashion week installations with the conceptual fashion label SSWTR, as well as a capsule menswear collection. Bureau V embraces architecture's role in the cultural landscape as fundamentally collaborative. The studio's disciplinary wanderlust has driven it to frequently take steps outside of architecture—to look back upon it with new clarities, perspectives, and complications. Bureau V principals have taught at Barnard College, Columbia University, the University of Pennsylvania Graduate School of Design, Syracuse University School of Architecture, and at the University of Kentucky College of Design. They have given lectures and participated in panel discussions at numerous institutions, including Columbia University, Performa, the Lower Manhattan Cultural Council, the Fashion Institute of Technology, and the Dessau Institute of Architecture. Bureau V and its members have received residencies and support from the MacDowell Colony, EMPAC, and the Lower Manhattan Cultural Council. Stella Lee and Peter Zuspan both hold Bachelors of Arts and Masters of Architecture from Columbia University. Laura Trevino holds a Bachelor of Architecture from the Instituto Tecnologico de Estudios Superiores de Monterrey and a Master of Science in Advanced Architectural Design from Columbia University. She is a licensed architect in New York State and in Mexico.

NOMINATION DETAILS

Enter The Dragon Chandelier by Bureau V is a Nominee in Lighting Products and Lighting Projects Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Bureau V when results are announced.
AWARD DETAILS

Enter The Dragon Chandelier by Bureau V is Winner in Lighting Products and Lighting Projects Design Category, 2015 - 2016.
