Relio Ultra-high CRI Usb Lamp by Marco Bozzola & Roman Radaelli

Home > Winners > #39899


DESIGN DETAILS
DESIGN NAME:
Relio

PRIMARY FUNCTION:
Ultra-high CRI Usb Lamp

INSPIRATION:
Relio is born as the dream of three 25yr-old Italian guys of creating a light users would fall in love with. Artificial lamps nowadays emit bad quality light, leading to poor, unnatural color rendition. The idea is simple: light is an instrument used to do things, professionally or in spare time. Relio emits a Sun-like light spectrum, and colors will be perceived the way they are. In the long run, you'll be able to do things more proficiently and with more satisfaction.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

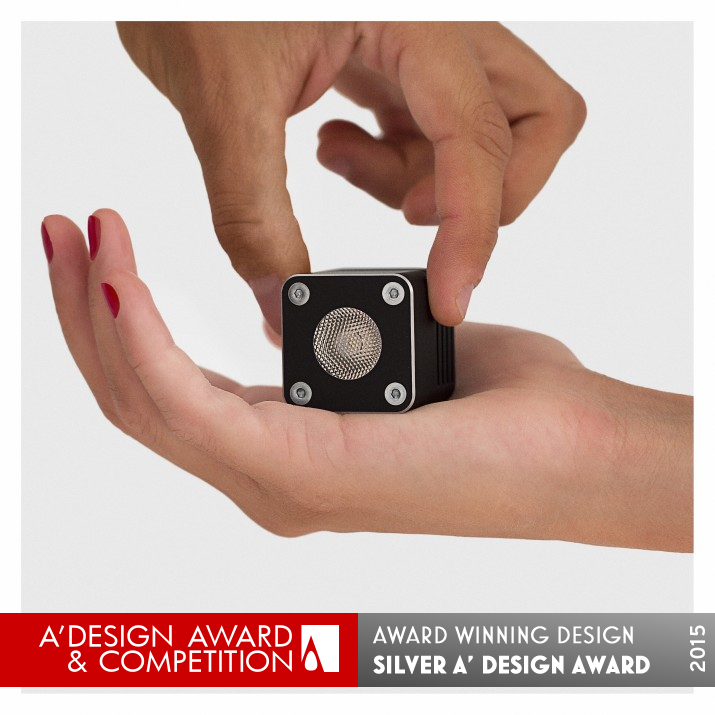

Relio is the smallest, most powerful and most rugged USB light, and the only one in the world to emit light with ultra-high color rendering (CRI). At 35mm, it's the smallest, most portable package we were able to conceive: powered by ubiquitous USB, pocketable, rugged, with a tripod socket to be mounted everywhere, and with custom TIR optics to provide a near-perfect, artefacts-free beam. It's machined in Italy from a solid aluminium block, hand-sanded and hand-assembled with maniacal precision.

OPERATION / FLOW / INTERACTION:
Relio is powered by ubiquitous USB: a standard socket is all it takes to power it on. It is really bright! For mobile-usage needs, it can also be powered by a USB battery pack (the ones used to charge smartphones on-the-go). Relio can be mounted on standard UNC 1/4-20 camera tripods, because it has a standard socket on its bottom. We believe that users have the right to choose their preferred accessories, and find them perfectly compatible. That's what we call a "user-friendly" design!

PROJECT DURATION AND LOCATION:
Idea is born on December 2013, and took a lot of personal efforts to be turned into a production-ready item. We completed CE and FCC certifications, patented our idea, our design and our trademark, self-made our beautiful website and self-managed our media advertising. It was a success! After being featured on some famous light and photography blogs, we sold-out the initial stock in 6 hours!

FITS BEST INTO CATEGORY:
Lighting Products and Lighting Projects Design

PRODUCTION / REALIZATION TECHNOLOGY:
Relio is CNC machined from a single block of aluminium. Every piece is hand-sanded, polished, then anodised. To achieve perfect evenness, items have to be tilted to a specific angle to avoid acid stains. Then, each Relio is hand-positioned onto a vice to polish chamferings. Relio uses no glue, seals, o-rings: this peculiarity makes it durable, easy to assemble and to fix. The front screws resemble rivets: no one loves screws in the front! ..but our screws are a very distinctive part of Relio appearance.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Size: 35*35*35mm Weight: 76g CNC machined from block Aluminium (body), PMMA (2x TIR lenses included) Hard anodisation type III Further specs at: http://bit.ly/1BHihYo

TAGS:
usb, light, led, high-cri, CRI, photography, aluminum, eco, green, color rendering

RESEARCH ABSTRACT:
We wanted to provide one of the highest color rendering index possible. We tested a lot of light sources, it was really hard to find the right one. The optics have been a critical component: we wanted a perfect beam shape. At the end, we made our own TIR lenses. Such a challenge! Power efficiency has been hard to achieve: we custom-developed the internal electronics to reduce wasted heat to minimum. The result: 3W power consumption, 200 lumens of light in 92-96CRI. Best-in-class!

CHALLENGE:
Relio design had to be emphatic, elegant, unobtrusive, distinctive. We took a cube, slightly rounded it and matched all possible proportions between components: screws, lens, chamferings, all shapes are proportional to each other. The result is a very organic, solid-looking item.

ADDED DATE:
2015-02-26 17:11:32

TEAM MEMBERS (3) :
Marco Bozzola, Roman Radaelli and Ivan Capelli

IMAGE CREDITS:
35 ImageMix
Matteo Bertoli
MovieYourSound
Rocco Lorenzoni
Chiara Bozzola

Visit the following page to learn more: http://www.relio.it
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Relio

PROFILE:
Relio is born as the first project developed by three young friends to test their skills in making innovative hardware products. They managed all the aspects of it, from the design, logo, 3D-modeling, chain production and QA, marketing, website crafting, PR, brand registration and sales network. It took a lot of personal efforts and sleep deprivation to bootstrap it, and Relio is now having great success among enthusiasts and professionals in the photography business.

NOMINATION DETAILS

Relio Ultra-High Cri Usb Lamp by Marco Bozzola & Roman Radaelli is a Nominee in Lighting Products and Lighting Projects Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Marco Bozzola & Roman Radaelli when results are announced.
AWARD DETAILS

Relio Ultra-High Cri Usb Lamp by Marco Bozzola & Roman Radaelli is Winner in Lighting Products and Lighting Projects Design Category, 2014 - 2015.



· Press Members: Login or Register to request an exclusive interview with Marco Bozzola & Roman Radaelli.

· Click here to register inorder to view the profile and other works by Marco Bozzola & Roman Radaelli.
