Orion Outdoor Lighting by Limay Turkkan & Anil Tontus

Home > Winners > #38991




DESIGN DETAILS
DESIGN NAME:
Orion

PRIMARY FUNCTION:
Outdoor Lighting

INSPIRATION:
We inspired by the sky and stars. The concept is a "magical night". We also wanted to promote our corporate identity. Orion is a prominent constellation located on the celestial equator and visible throughout the the world. As well as it consists the brightest stars that can be seen from world. "V" shaped supporting pillars represent our corporate identity.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

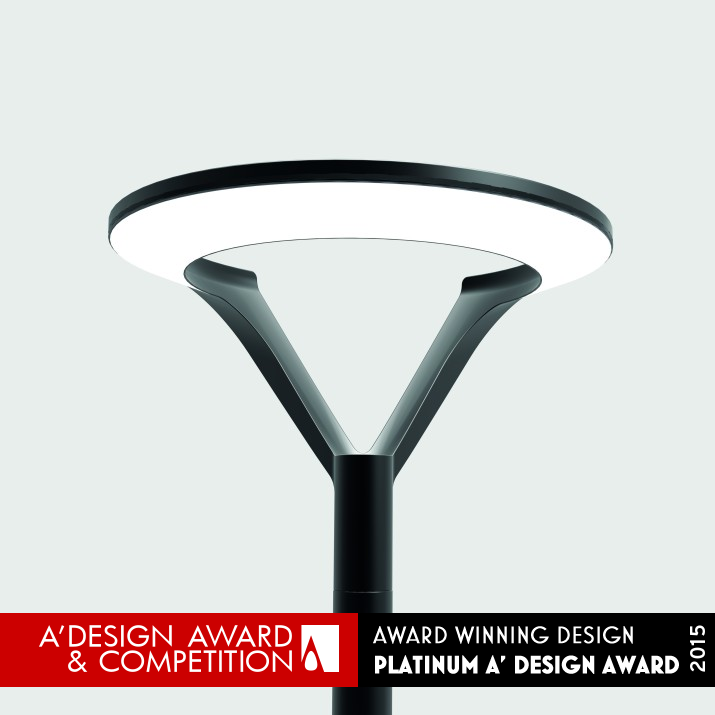

Orion is top-mounted LED luminaire for outdoor usage in areas like parks, gardens and etc. The design of the product is based on the functionality and aesthetics together to build a practical and faschinating structure which also reflects our brand identity. Orion provide customers an aesthetic product and also gives them wide variety of technical solutions for their lighting problem. Additionally to the main LED light source, there is an RGB LED line around the luminaire top that gives an adjustabe ambient light with different color choices.

OPERATION / FLOW / INTERACTION:
Orion is simple but yet very modern. It is completely made of aluminium alloy and mechanically designed to consist the least amount of parts to build the main body. This parts connect each other with smart and simple details. It has got also very simple mounting details which allow users to change the top of the luminaire easily with the minimum effort and time usage. . This thoroughness in mechanical and optical details makes it a very high standart product with IP66 rating and consolidate its simple and modern design. And the production details together with the material selection makes it sustainable and ecofriendly product. Also wider light angle provide a better diffusion and illumination.

PROJECT DURATION AND LOCATION:
Istanbul / Turkey, 2014

FITS BEST INTO CATEGORY:
Lighting Products and Fixtures Design

PRODUCTION / REALIZATION TECHNOLOGY:
The product consists of two main materials; aluminium alloy main body and PMMA optical cover. Under the optical cover there are LED modules (PCB/Printed Circuit Board) for illumination and also there is a constant current LED driver inside of the luminaire as a power supply. The LED PCB’s are mounted on a metal sheet to reduce the heat as a way of providing LED chips a longer lifetime. In the production of the product, we used aluminium injection die casting for the main body and applied powder coating for the different surface finishes, available in a broad range of colours.. The PMMA cover produced by plastic injection molding method.

SPECIFICATIONS / TECHNICAL PROPERTIES:
650 mm x 580 mm x 460 mm The LED modules life is 50,000 hours and the colour is consistent over lifetime. Orion provide customers an aesthetic product and also gives them wide variety of technical solutions for their lighting problem. The LED modules has got a CRI values greater than 80. It has got various luminosity values such as 1750lm, 2600lm, 4100lm and power values such as 20W, 30W, 44W. It provides different color temperature values such as 3000K, 4000K and 6500K.

TAGS:
LED, stars, orion, night, light, modern, design, vestel led lighting, shine, VESTEL

RESEARCH ABSTRACT:
Orion is designed with the inspration from the natural light sources of our planet. A research about our galaxy and space is conducted conceptually during the structural and emotional design process of the project. Also mechanical team focused on the outdoor usage and sustainable production while optical team worked on the luminous solutions.

CHALLENGE:
The hardest part of the design process is the development phase. After the creation of concept, we had difficulties in process of transforming the concept into a real and manufactured product. We tried not to limit our creativity but also tried to think about production factors and the technology we had. It was very challenging to decide when we will stop and the eventual design. We worked with the optical and mechanical team as the lighting design team and tried to solve problems with a multidisciplinary study.

ADDED DATE:
2015-02-16 14:11:22

TEAM MEMBERS (4) :
Limay Türkkan, Anıl Tontus, Esra Öcal and Selcen Akbay

IMAGE CREDITS:
Vestel LED Lighting Design Team, Orion, 2015.


Visit the following page to learn more: http://www.vestelled.com.tr/


CLIENT/STUDIO/BRAND DETAILS
NAME:
VESTEL LED Lighting

PROFILE:
Vestel Group is comprised of 29 companies operating in manufacturing, software and technology development, marketing, and distribution fields in the consumer electronics, household appliances, multimedia communication, LED lighting, and defence industries with € 5 billion turnover. Vestel was founded and started operation in 1984. The company joined the Zorlu Group in 1994, and since then it has continuously been increasing its production capacity, export activity, and market share.



NOMINATION DETAILS

Orion Outdoor Lighting by Limay Turkkan & Anil Tontus is a Nominee in Lighting Products and Fixtures Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Limay Turkkan & Anil Tontus when results are announced.


AWARD DETAILS

Orion Outdoor Lighting by Limay Turkkan & Anil Tontus is Winner in Lighting Products and Fixtures Design Category, 2014 - 2015.



· Press Members: Login or Register to request an exclusive interview with Limay Turkkan & Anil Tontus.

· Click here to register inorder to view the profile and other works by Limay Turkkan & Anil Tontus.
