Kiba Active Task Chair
I was inspired after reading “The Chair” by Galen Cranz. This quote resonated with me and helped drive the design.
“Physical design should promote an active awareness of posture and good use rather than passive belief that imperfect posture and pain are a part of life.”
I realized how detrimental sitting is to your health. Even if you’re active sitting can reduce the life expectancy as much as smoking can. The chair is one of humans closest object and should be designed to help improve our health.
UNIQUE PROPERTIES / PROJECT DESCRIPTION:

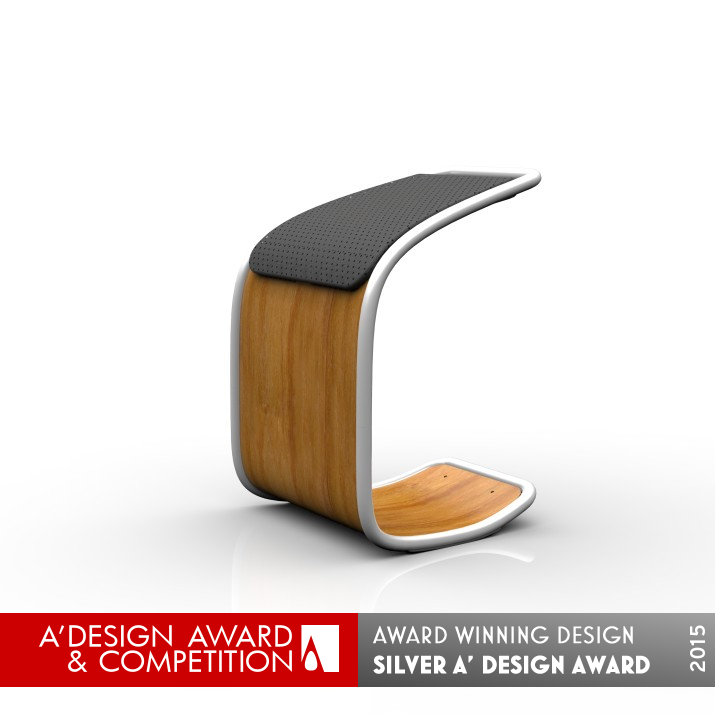

Kiba is an active chair that promotes movement to strengthen the core, while improving balance and flexibility. The angle seat allows user to sit at a perching position, which is the least harmful solution to the lower back when seated. The planar seat activates the sit bone to support the upward drive of the spine. A benefit to sitting in this position is that weight can be sense through the feet allowing for higher body awareness. The simple design allows for low cost manufacturing and modular customization.
OPERATION / FLOW / INTERACTION:
Kiba has a rocking design use to keep the user active while sitting. The angle seat does not cut into the thighs allowing for better blood circulation. The chair's form guides the body into a perching position allowing the user to sense their weight through their feet improving body awareness. Having no chair back allows for autonomous sitting which improves core strength and flexibility.
PROJECT DURATION AND LOCATION:
Started January 2014 and finished May 2014 at San Jose State University.
FITS BEST INTO CATEGORY:
Furniture, Decorative Items and Homeware Design
PRODUCTION / REALIZATION TECHNOLOGY:
The wood seat was bent using layered 1/8th inch italian poplar and layered up to 3/8th inch. A jig made of MDF was created to bend the 3/8th sheet of wood. Secondary operations were used to trim and sand the wood veneer. The 1" HREW steel tubes were bent using two different methods. The larger radius was bent using a tube roller and the tighter radius was bent using a hydraulic tube bender. A total of two patterns consisting of 4 bent tube pieces were welded together to create the frame. Additional supports were added above and below to add strength. The spot welds were sanded and the frame was powder coated. The micro-perforated leather seat was wrapped around 1/2" neoprene and is velcro onto the wood seat. The chair is easily assemble using 4 nuts and bolts. Minimal parts were used for ease of manufacturing.
SPECIFICATIONS / TECHNICAL PROPERTIES:
Initial research was done on health implications associated to sitting. This lead into ergonomic research dealing with why traditional right angle chairs are bad for your health. Market research was done on what solutions are currently available. Applying somatics, which is a body mind perspective involving the whole human being focusing in a practical way on the interactions of posture movement, emotion, self-concept, and cultural values. Using body-conscious design to improve posture and overall health.
Sitting is something that people do without any thought. We sit while we drive, at work, in school, at home and while we eat. We sit more than half of our day. Humans are not made to sit and we've adapted to bad design. The challenge was to change people's perception of what sitting is. Chairs should be used as tools to help train our body instead of sedate it. This project was driven to help people become more aware of how they sit.
TEAM MEMBERS (5) :
Designer: Tommy Duong, Professor: Christian Freissler , Mentor: Alex Llavore, Metal Fabrication: Warren White and Powder Coater: Eric Chen
