Drawor Construction Layout System by Huaibo Zhu, Ziteng Li and Weihan Chen |
Home > Winners > #170950 |
 |
|
||||
| DESIGN DETAILS | |||||

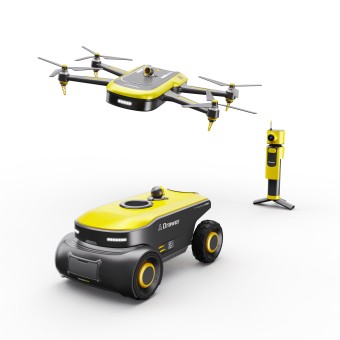

| DESIGN NAME: Drawor PRIMARY FUNCTION: Construction Layout System INSPIRATION: The construction industry is currently undergoing a profound change towards unmanned and automated development, and the traditional form of construction layout has been difficult to meet the high requirements of modern engineering for precision, efficiency and safety. Manual layout has the problems of large error and low efficiency, requiring workers to carry and work on multiple equipments at the same time, which is a cumbersome process and difficult to locate accurately in the complex construction environment. UNIQUE PROPERTIES / PROJECT DESCRIPTION: The Drawor Construction Layout System is an intelligent unmanned solution that combines a drone, layout robot and total station for intelligent digital collaboration. The drone transports the robot to the site, where it deploys the total station and starts the layout. It uses dynamic dual-track parallel technology and drone-mounted prisms to solve visibility issues caused by obstacles during layout, achieving millimetre-level accuracy. It improves layout accuracy/efficiency, cuts costs, and adapts to complex environments. OPERATION / FLOW / INTERACTION: The Drawor system achieves efficient building automation line drawing solution through automated collaboration. Drones accurately deliver laying robots and total stations to the site, and the robots autonomously deploy and initiate the laying process. The dynamic dual track technology ensures real-time linkage between the total station and the drone prism, breaking through line of sight limitations and achieving millimeter level positioning. Reduce manual intervention and improve efficiency and accuracy. PROJECT DURATION AND LOCATION: The project begins in March 2024 at the BIT campus and ends in February 2025 at the campus. FITS BEST INTO CATEGORY: Idea and Conceptual Design |
PRODUCTION / REALIZATION TECHNOLOGY: Drawor construction layout system integrates four core technologies: dual-track dynamic measurement, electric permanent magnet suction cup, laser SLAM navigation, and 5G real-time control to achieve millimetre-level accuracy. It adopts advanced materials such as carbon fibre drones and aerospace aluminium alloy robots to improve construction efficiency and measurement accuracy, and supports digital intelligent construction under complex working conditions. SPECIFICATIONS / TECHNICAL PROPERTIES: Dimensions (W mm x D mm x H mm) Layout robot: 697 x 396 x 190 Drone (including propeller): 1041 x 661 x 134 Total station: 125 x 106 x 303 TAGS: Construction layout, line-marking robot, total station, UAV deployment, unmanned construction, dynamic dual-track technology, digital construction RESEARCH ABSTRACT: This study focuses on unmanned and intelligent construction layout and optimises the plan through experiments and field tests. Dynamic dual-track technology breaks through visibility limitations, enables millimetre-level positioning of unmanned aircraft in collaboration with robots, reduces human intervention, enhances adaptability to complex environments, improves accuracy and efficiency, and reduces safety risks. CHALLENGE: The challenge of this project is to achieve an intelligent and integrated technological breakthrough in the traditional construction layout model while ensuring system stability and feasibility. From a creative point of view, the goal is to break through the limitations of traditional construction layout equipment that operates independently and relies heavily on manual labour, and to design an efficient and precise solution that adapts to complex construction environments. ADDED DATE: 2025-02-28 12:09:10 TEAM MEMBERS (4) : Huaibo Zhu, Ziteng Li, Weihan Chen and Tian Yuan IMAGE CREDITS: Huaibo Zhu, Ziteng Li and Weihan Chen, 2024. |
||||
| CLIENT/STUDIO/BRAND DETAILS | |
 |
NAME: Beijing Institute of Technology PROFILE: Beijing Institute of Technology (BIT), also known as BIT, is located in Beijing and is under the Ministry of Industry and Information Technology. It is a national key university and a centrally managed university. It is listed as one of the first universities to be constructed under the ‘211 Project’, ‘985 Project’ and ‘World Class University’, and also listed in the second round of the ‘Double First Class’ construction universities. double first-class’ construction universities. Beijing Institute of Technology is ranked among the top 300 universities in the world. |
| AWARD DETAILS | |
 |
Drawor Construction Layout System by Huaibo Zhu, Ziteng Li and Weihan Chen is Winner in Robotics, Automaton and Automation Design Category, 2024 - 2025.· Read the interview with designer Huaibo Zhu, Ziteng Li and Weihan Chen for design Drawor here.· Press Members: Login or Register to request an exclusive interview with Huaibo Zhu, Ziteng Li and Weihan Chen. · Click here to register inorder to view the profile and other works by Huaibo Zhu, Ziteng Li and Weihan Chen. |
