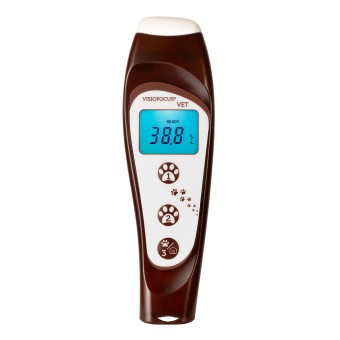

Visiofocus Vet Non Contact Thermometer by Tecnimed Srl |
Home > Winners > #165773 |
 |
|
||||
| DESIGN DETAILS | |||||
| DESIGN NAME: Visiofocus Vet PRIMARY FUNCTION: Non Contact Thermometer INSPIRATION: VisioFocus Vet is the natural evolution of VisioFocus, the non-contact projection thermometer intended for human use, and of Thermofocus Animal, the first non-conctact thermometer for animals and belonging to the same family of Thermofocus, the first non-contact thermometer in the world. After revolutionising and simplifying the way human beings’ temperature is taken, Tecnimed has thought of pets and animals as well: there is no more reason to take the animal's temperature using a rectal thermometer. UNIQUE PROPERTIES / PROJECT DESCRIPTION: Infrared medical thermometer intended to measure body temperature of animals without even touching them, for instantaneous, hygienic and accurate measurements. The aiming system, which is absolutely safe (no laser), indicates the correct reading distance and the area whose temperature is taken. The recommended measurement area in most of animals is the eye. Thanks to an app it is possible to align the measurement to any type of animals (each type, breed and size has its own temperature range). OPERATION / FLOW / INTERACTION: To measure body temperature: 1) press the measuring button associated with the animal; 2) approach the thermometer perpendicular to the eye, until the projected arcs form a circle on the hair around the eye (if the thermometer is too close or too far away, the arcs do not form a circle); 3) when a complete circle formed by the 4 arcs is projected, the thermometer is at the right distance and the reading is accurate. You can also take skin temperature to monitor inflammations or other local problems. PROJECT DURATION AND LOCATION: The project started in January 2019 and finished in January 2021 (with a pause due to Covid-emergency) in Vedano Olona (Italy). |
PRODUCTION / REALIZATION TECHNOLOGY: Technology includes: 1) a patented aiming system, made of a LED system projecting two pair of arches, which clearly indicates the correct distance and the correct point for an accurate measurement to be taken; 2) two exclusive stabilisation systems (Automatic and Manual Quick Calibration Systems) to stabilise the thermometer to the ambient conditions; 3) an alignment system to calibrate the temperature reading to any type, breed and size of animals (through an App). SPECIFICATIONS / TECHNICAL PROPERTIES: Dimensions: 144 x 43.5 x 21.5 mm including cap; weight: 98 gr (with batteries) TAGS: Non-contact thermometer, no touch thermometer, animal thermometer, medical device, animal health, animal health care RESEARCH ABSTRACT: We activated a clinical research with the department of Veterinary Sciences of the University of Parma with two purposes: 1) to align non-contact eye measurements with internal temperatures taken with traditional rectal thermometers. The reason is that the surface external temperature is lower than the internal one due to the dissipation of heating. This is due to the second law of thermodynamics (if a body - the eye in this case -, is immersed in a fluid - the surrounding air -, the body should reach the same temperature of the fluid). This heat loss is partially compensated by the body (in a live subject) and the equilibrium that is reached depends on the ambient temperature. 2) To make VisioFocus Vet able to add the right correction factor for each animal (because the animals’ body temperature changes according to type, breed and size). CHALLENGE: The first challenge of this design was to identify the best area from which to take a temperature to an animal, without touching it. Criteria for the best area are that it should be without hair and well vascularised. Test demonstrated that eye is a very good place and animals well tolerate this reading. In case eye was not accessible, non-contact measurement in the rectal area have been demonstrated to be enough accurate and comfortable. ADDED DATE: 2024-11-26 06:23:50 TEAM MEMBERS (1) : Director: Francesco Bellifemine; R&D Manager: Vincenzo Rudi; Product manager: Iolanda Scibelli; Quality/Regulatory: Cinzia Bellifemine IMAGE CREDITS: Tecnimed Srl, 2024. PATENTS/COPYRIGHTS: Patented. Patents holder: Tecnimed s.r.l.. Patents no. US 7,651,266B2 (2010, USA) - US 8,128,280 (2012, USA) - US 8,821,010 (2014, USA) - EP 1.886.106 (2006, Europe) - EP 2577242(B1) (2011, Europe) - KR 10-1898897 (2018, Korea) - CN 103026192B (2015, China) |
||||
| Visit the following page to learn more: https://www.tecnimed.it/en/prodotto/dist |
|||||
| CLIENT/STUDIO/BRAND DETAILS | |
 |
NAME: TECNIMED s.r.l. PROFILE: Tecnimed srl is an Italian company specialised in the development and manufacture of electronic and medical devices, with a special attention for healthcare protection. The company manufacturing facility is based in Italy and all its main products are strictly manufactured within its own factory, which ensures a greater product quality and reliability. The company emphasises on innovation as its business strategy, and designs and produces intelligent and revolutionary products. Tecnimed srl is known for its non-contact thermometer Thermofocus, the first non contact clinical thermometer in the world, for the only projection thermometer VisioFocus, and for Zanza-Click (Mosquito-Click), a revolutionary afterbite device against mosquito bites. Tecnimed srl has a well-established distribution network, with distributors spread across the globe in Europe, Asia, Africa, Middle East, North and South America, Oceania. |
| AWARD DETAILS | |
 |
Visiofocus Vet Non Contact Thermometer by Tecnimed Srl is Winner in Pet Care, Toys, Supplies and Products for Animals Design Category, 2024 - 2025.· Read the interview with designer Tecnimed Srl for design Visiofocus Vet here.· Press Members: Login or Register to request an exclusive interview with Tecnimed Srl. · Click here to register inorder to view the profile and other works by Tecnimed Srl. |
