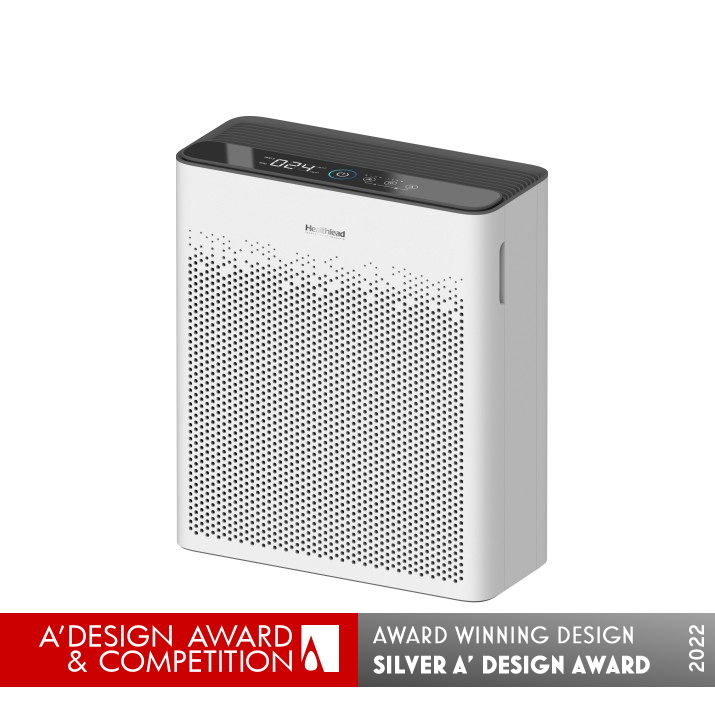

Compact Pro Air Purifier by Sxdesign

Home > Winners > #137580


DESIGN DETAILS
DESIGN NAME:
Compact Pro

PRIMARY FUNCTION:
Air Purifier

INSPIRATION:
People in developing regions are facing issues of low income and air pollution. So designers wanted to create a low cost product with high performance for them. By using computational fluid dynamics, We try to use a systematic method to analyze and optimize the shape of the fan runner, the internal structure, and the overall proportion of the product. Finally, under the condition of controlling the cost, the performance of the product has been significantly improved from the previous generation.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:
After systematic optimization, we resculpted the shape of the fan runner in Compact Pro and determined that a square proportion would be better. This improves the performance by 50% while making better use of space and arranges the electronics more compactly. In design, the floating table-shaped interaction area with breathing light creates the visual center. The various parts are integrated by a high-order surfaces transition surrounded. The minimalist, neutral style conveys an inclusive ethos.

OPERATION / FLOW / INTERACTION:
After power on, click on the center of the panel to start working. The purifier has three air speeds and four time settings. The red, yellow and green colors of the breathing light are displayed in conjunction with the digital display to show the current air quality. Compact Pro also supports locking and filter replacement instructions. The internal filter can be replaced by removing the front case by holding the grip position.

PROJECT DURATION AND LOCATION:
The project started in January 2021 in Beijing and finished in June 2021 in ShenZhen, China.

PRODUCTION / REALIZATION TECHNOLOGY:
White body with grey top. ABS injection molding. Transparent black acrylic interactive panel.

SPECIFICATIONS / TECHNICAL PROPERTIES:
CADR:270m3/h. White body with grey top. Dimensions: 365mm×420mm×160mm.

TAGS:
air purifier, systematic, compact, cost, performance

RESEARCH ABSTRACT:
After research, We found that some characteristics of the fan such as the spiral opening, worm tongue size, etc. have a strong correlation with performance. But size, proportion, cost, design, etc. will also be affected. Therefore how to determine a balance among these changes is a systemic problem. And to solve this problem requires us to use a systematic approach to organically sort, combine, organize, and analyze all the influencing factors.

CHALLENGE:
Design team had to maximize the performance and design possibilities within the constraints as cost, aesthetics, etc. This process involves large amounts of combinatorial experimentation. To achieve a better balance also requires us to make various trade-offs. At the same time, to deliver a product like this requires design team to consider the problem from a variety of perspectives such as market, user, function, structure, aesthetics, craftsmanship and so on, which is also a huge challenge.

ADDED DATE:
2022-02-27 13:24:56

TEAM MEMBERS (8) :
Hao Huang, Yingfei Sun, Qian Hao, Haining Jiang, Xu Chen, Rong Zhang, Zhixue Zou and Yaogang Chen

IMAGE CREDITS:
Sxdesign

PATENTS/COPYRIGHTS:
Sxdesign

CLIENT/STUDIO/BRAND DETAILS
NAME:
Healthlead

PROFILE:
Healthlead Corporation Limited (Healthlead) is one leading high tech enterprise which is dedicating in air purifier, air fresh system and related environmental protection material development, manufacturing and marketing, and also major professional air purifier OEM & ODM manufacturer.

NOMINATION DETAILS

Compact Pro Air Purifier by Sxdesign is a Nominee in Heating, Ventilation, and Air Conditioning Products Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Sxdesign when results are announced.
AWARD DETAILS

Compact Pro Air Purifier by Sxdesign is Winner in Heating, Ventilation, and Air Conditioning Products Design Category, 2021 - 2022.
