FlowIO Pneumatics Development Platform by Ali Shtarbanov

Home > Winners > #122452


DESIGN DETAILS
DESIGN NAME:
FlowIO

PRIMARY FUNCTION:
Pneumatics Development Platform

INSPIRATION:
Arduino and Raspberry Pi democratized electronics and computing. FlowIO aims to democratize soft robotics and programmable materials in a similar way. The lack of development platforms for soft robotics makes the field highly inaccessible for most people and stifles innovation. The FlowIO platform was developed with the goal to democratized the emerging field of soft robotics and make rapid prototyping more accessible for researchers, artists, designers, and makers.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

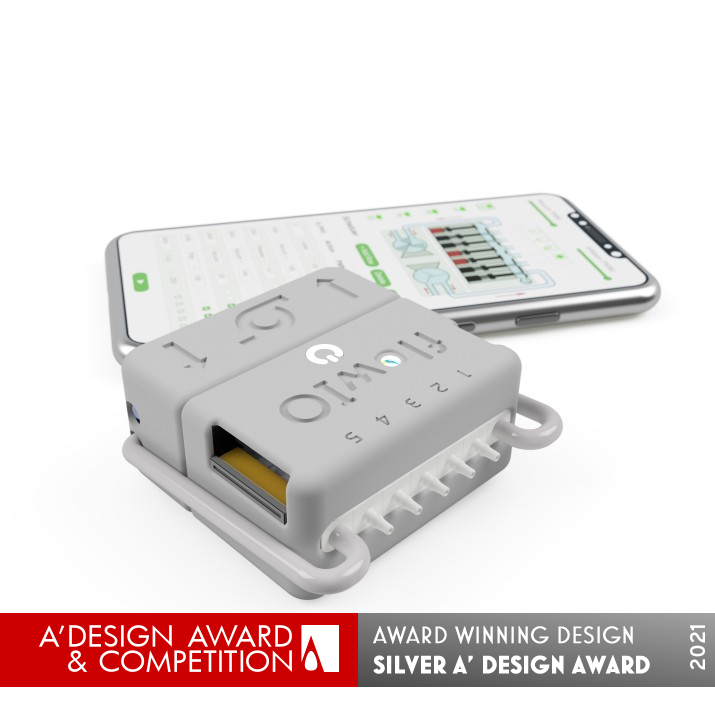

FlowIO is a fully-integrated, general-purpose development platform for control of soft robots and programmable materials. With magnetically connected pump modules that are swappable on-the-fly, FlowIO can satisfy diverse project needs of researchers, artists, and makers. A software toolkit with mobile and desktop graphical interfaces, Bluetooth controls, and APIs for Arduino and JavaScript — enable users from any technical background to get started and unleash their creativity with FlowIO.

OPERATION / FLOW / INTERACTION:
FlowIO enables users to rapidly bring soft robotics projects to life and to focus on developing actuators and experiences instead of spending time designing pneumatics, electronics, or writing control software. Miniature size, battery operation, and various modules and accessories make FlowIO suitable for both desktop and wearable applications involving inflation, vacuum, release, pressure sense, and flow variability. Multiple APIs and GUI make it possible for anyone to use the device with ease.

PROJECT DURATION AND LOCATION:
FlowIO originated out of necessity as a system I made for my own research in soft robotics and morphable interfaces at MIT Media Lab. As many other researchers, makers, and artists showed strong interest and asked to use FlowIO in their own works, in late 2019 the idea was born to augment FlowIO into a truly general purpose pneumatics development platform suitable for everyone. FlowIO has now undergone over 20 prototype iterations, with numerous new features added during those iterations.

PRODUCTION / REALIZATION TECHNOLOGY:
FlowIO contains a main module, different pump modules, expansion modules, and accessories. The main module integrates 7 valves, 2 custom PCBs, sensors, microcontroller, and a battery with charger. Each pump module has 2 pumps, a custom PCB, and a battery with integrated charger. Auxiliary modules also consist of custom PCBs. The modules connect magnetically and are enclosed in 3D-printed snap-fit enclosures, that can be printed in any color. All hardware designs are made public and open-source.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Five pneumatic I/O ports, each capable of 7 actions, and three swappable pump modules (small, medium, large) can satisfy different needs for pressures (-26 to 30 psi), size, and flow-rates. FlowIO with small pumps has dimensions 59x55x28 mm and mass of only 114g. Expansion modules and accessories enable additional sensing, control, and mounting options for both wearable and nonwearable applications. BLE Capability, multiple APIs, and a GUI enable diverse options for interacting with FlowIO.

TAGS:
Development Platform, Toolkit, Pneumatic Control System, Soft Robotics, Programmable Materials, Shape Change, Tangible User Interface, Wearables, Arduino, Raspberry Pi

RESEARCH ABSTRACT:
Over a dozen people have used FlowIO to date, from PhD researchers and high-school students to makers and artists. It has enabled people to develop projects in various categories including interactivity, artistic expression, locomotion, telepresence, haptic feedback, and assistive technologies. Feedback was collected from existing and prospective users continuously to inform many of the design iterations. FlowIO was also used as a teaching tool in a graduate digital fabrication course at MIT.

CHALLENGE:
The main challenge was making FlowIO highly energy-efficient and miniaturized yet fully-integrated with pumps, valves, sensors, electronics, batteries. and even charging circuits. Other pneumatic platforms with far fewer capabilities are 5-10 times larger than FlowIO and they still require external pumps and/or power sources. Over a dozen design iterations were dedicated towards finding clever ways of reducing size. Developing multiple APIs and a cross-platform GUI was another major challenge.

ADDED DATE:
2021-03-01 01:20:37

TEAM MEMBERS (4) :
Ali Shtarbanov, Hyejun Youn, Ozgun Afsar and Advisor: Dr. Joseph Paradiso of MIT Media Lab

IMAGE CREDITS:
Ali Shtarbanov

Visit the following page to learn more: http://www.softrobotics.io
CLIENT/STUDIO/BRAND DETAILS
NAME:
Ali Shtarbanov, MIT Media Lab

PROFILE:
Ali Shtarbanov is a Human-Computer Interaction researcher and Ph.D. student at MIT Media Lab. He develops platforms, tools, and enabling technologies that empower makers, researchers, designers, and artists with new technological opportunities to rapidly bring projects and ideas to life, enabling them to create the futures they envision. Ali's primary mission is to make opportunities for creativity, prototyping, and innovation more seamless and more accessible for people from all technical and all socioeconomic backgrounds.

NOMINATION DETAILS

Flowio Pneumatics Development Platform by Ali Shtarbanov is a Nominee in Scientific Instruments and Research Equipment Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· The profile and other works by Ali Shtarbanov is also kept secret. This information will also be available later.
AWARD DETAILS

Flowio Pneumatics Development Platform by Ali Shtarbanov is Winner in Scientific Instruments and Research Equipment Design Category, 2020 - 2021.



· Press Members: Login or Register to request an exclusive interview with Ali Shtarbanov.

· Click here to view the profile and other works by Ali Shtarbanov.
