HTE055 Modular Outdoor Power Supply by Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin

Home > Winners > #122005




DESIGN DETAILS
DESIGN NAME:
HTE055 Modular

PRIMARY FUNCTION:
Outdoor Power Supply

INSPIRATION:
Its design is inspired by the superposition of building blocks. The machine is designed based on the following current situations: the low-power power supply is not enough when using high-power electrical appliances, while the high-power power supply is too bulky when using low-power appliances. Therefore, an outdoor power supply that can double the capacity and power, is needed to meet different demands.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

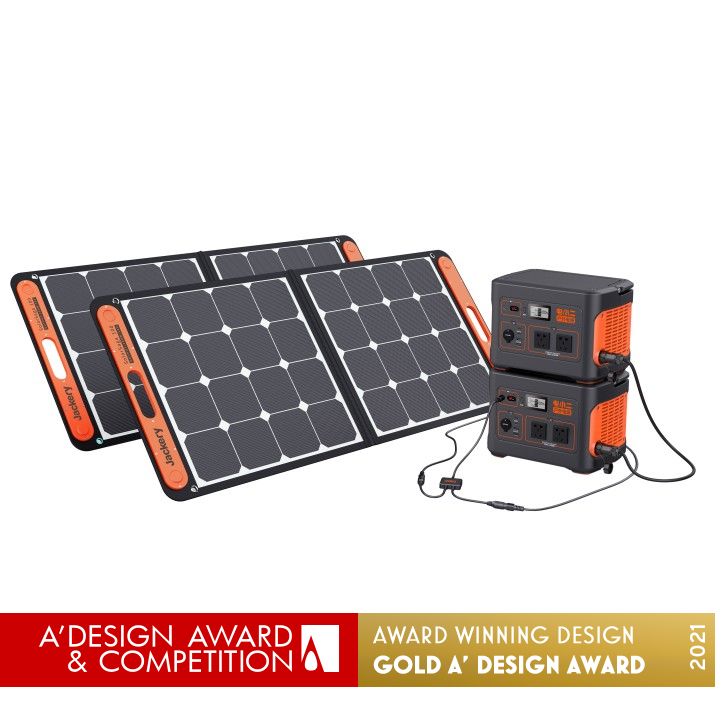

It can connect unlimited units in parallel. One single unit has 1100w power and 1002wh capacity, and the power can be doubled to supply power for high-power electrical equipment through parallel connection.The HTE055 outdoor power supply can be charged with the solar panel, and can supply power for 14 devices at the same time. The power supply is compatible with 99% of common electrical appliances and is suitable for various outdoor environments from -60℃ to 40℃.

OPERATION / FLOW / INTERACTION:
One single machine can be connected with other units infinitely, which is suitable for various scenes such as outing, outdoor work, etc. It is equipped with a high-definition LCD screen and supports solar charging, mains charging, and vehicle charging. Sinusoidal current output is able to protect electrical appliances effectively. It adopts six safety protections and intelligent temperature control to dissipate heat, coupled with the independent switch of output and rubber dust plug, which is safer and more convenient to use.

PROJECT DURATION AND LOCATION:
The project started in 2020 in Shenzhen and finished in November 2020 in Shenzhen.

PRODUCTION / REALIZATION TECHNOLOGY:
Due to the durability, stability and portability of the machine, it uses a 94V-0 fireproof shell, which is wear-resistant, drop-proof, anti-ultraviolet and is resistant to wind and sand. The power supply with built-in electric vehicle-grade power battery has passed the UN38.3 shockproof test and 9 quality inspection, which ensures a stable current output.

SPECIFICATIONS / TECHNICAL PROPERTIES:
W336*D237*H241mm

TAGS:
Outdoor power supply, multi-parallel, high power, high capacity, easy-to-store, portable, solar charging, green energy.

RESEARCH ABSTRACT:
Research Goal: To double the power supply’s capacity and power through superposition, thus to solve the difficulty of power supply for outdoor high-power electrical appliances. Research Direction: Unlimited parallel connection of multiple units Market Research: Data from online research and professional research company Social Influence: The new design concept will be promoted to the entire industry through our global sales network and long-term cooperation with GP, Samsung, China Unicom, JVC, Intel, etc..

CHALLENGE:
Main challenges: 1, heat dissipation, wind noise, temperature control of inverter 2, Drop reliability 1, We use the intelligent temperature control system to automatically adjust the fan speed, and guiding by the heat dissipation principle of conduction, dissipation and flow, we optimize the layout of the heat sink aluminum sheet, air ducts and other structures to form a cycle, reducing noise and improving heat conduction efficiency. 2. The machine’s self-tapping screws are changed to in-mold injection copper nuts, and the machine is assembled and fastened with screws to solve the problem of drop reliability.

ADDED DATE:
2021-02-28 11:58:39

TEAM MEMBERS (1) :
David Bai;Tao Yang;Zhifeng Tang;Xiaowei Yin-Shenzhen Hello Tech Energy Co.,Ltd

IMAGE CREDITS:
Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin, 2020.



CLIENT/STUDIO/BRAND DETAILS
NAME:
"Wei Bai""Xiaowei Yin"

PROFILE:
Shenzhen Hello Tech Energy Co.,Ltd is a national Hi-Tech company that integrates R&D, manufacture & Sales of Portable Power Station products and specialized in providing safe, clean and reliable power solutions anywhere for everyone. The company attaches great importance to independent research and development and innovation. Up to now, it has obtained 21 invention patents, 33 utility model patents and 68 appearance patents, and won the German Red Dot Design Award, IF Design Award and CES Design Award for many times. And Hello Tech is good at exploring the potential demand, and created a new category of lithium battery portable energy storage in 2015 to meet the new demand for portable, green and quiet power for outdoor leisure and emergency backup. After five years of planning and layout, the company has built an M2C intelligent manufacturing direct selling model integrating R&D and innovation, intelligent manufacturing, leading brand and cross-border e-commerce. Relying on the brands of "Jackery" and "Diana Xiaoer", the company mainly focuses on e-commerce direct sales, and has become the first brand in the market segment of global mainstream e-commerce platforms such as "Amazon, Lotte, Tmall and Jingdong" Based on the digital M2C intelligent direct selling on global platforms, we focus on green portable power stations, keeping innovating and applying, and is determined to build as a world-class consumer brand of new energy.



NOMINATION DETAILS

Hte055 Modular Outdoor Power Supply by Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin is a Nominee in Energy Products, Projects and Devices Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin when results are announced.


AWARD DETAILS

Hte055 Modular Outdoor Power Supply by Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin is Winner in Energy Products, Projects and Devices Design Category, 2020 - 2021.



· Press Members: Login or Register to request an exclusive interview with Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin.

· Click here to register inorder to view the profile and other works by Wei Bai, Tao Yang, Zhifeng Tang and Xiaowei Yin.
