Iconic Sx80 Hybrid Yacht Design by Rumeysa Aris

Home > Winners > #102353


DESIGN DETAILS
DESIGN NAME:
Iconic Sx80

PRIMARY FUNCTION:
Hybrid Yacht Design

INSPIRATION:

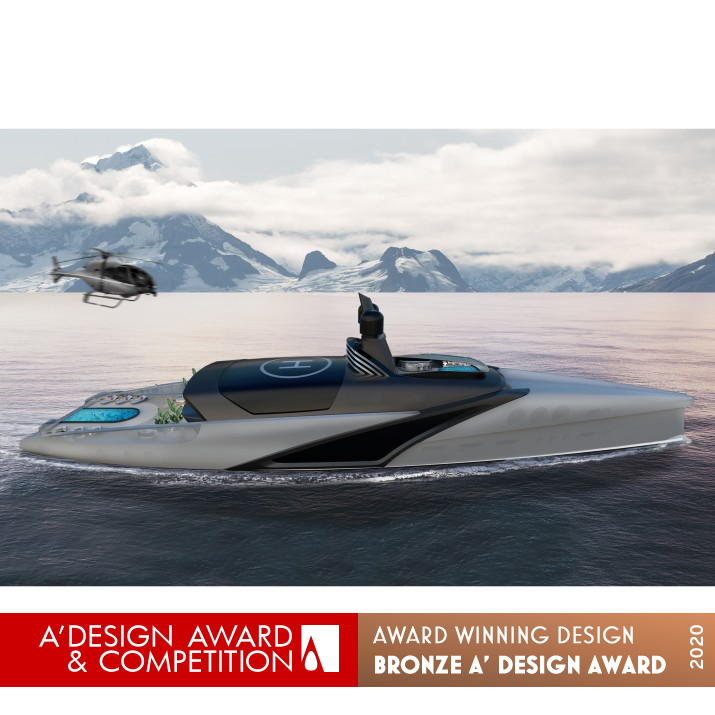

Her sweeping exterior curves are inspired by the rolling waves of the ocean, with the hull flanked by 6 meters of glass to blend the relationship between super yacht and sea, and to prove that the Iconic Sx80 is as innovative as it is appealing.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:
The Iconic Sx80 is emboldened by an innovative and functional design, sleek and bold surfaces, and renewed attention to detail to bring a new vision to the super yacht design industry. This 80 meters long vessel has characteristics of an expedition vessel and a performance superyacht combine to compliment and contrast, to ensure as a hybrid yacht appeal widely and resonate deeply.

OPERATION / FLOW / INTERACTION:
This custom displacement yacht is a steel hull and aluminum superstructure, with anchor stabilizers that work at zero speed, increasing onboard comfort when anchored and on rough waters. With a cruising speed of 18 knots, a maximum speed of 20 knots and a range of 7,500nm from her 200,000-litre fuel tanks, she is the excellent combination of performance, utility and luxury.

PROJECT DURATION AND LOCATION:
Project started at May 2019 and Exterior Design Details and General Arrangement Plans are finished at January 2020. Interior design details are still work in progress. Estimated time of the completed design is May 2020,Sydney/Australia.

PRODUCTION / REALIZATION TECHNOLOGY:
Its interior design maximizes levels of quality and comfort while utilizing recycled materials where possible for global sustainability reasons. This hybrid superyacht supports five different operation modes from diesel and diesel-electric combinations to a fully electric propulsion system which produces less noise and reflect the needs of clients to be more environmentally responsible. The Iconic Sx80’s top speed in hybrid mode is 20 knots. Power comes from a 30-tonne lithium-ion battery bank capable of holding 1 million watts of electricity. Even in diesel mode, the Iconic-Sx80 is highly efficient, with 30 per cent lower fuel consumption than her contemporaries relating to her dynamic hull shape.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Technical Specification Loa: 80.00 m Lwl: 78.50 m Beam: 15.60 m Draught: 3.70 m Displacement: 2250 Gt External Living Area: 290 Sqm Owners' Statement: 100 Sqm Vip Statement: 45-50 Sqm Guests: 8 Guests + 2 Owners Crew: 14+1 Propuldion 1 x Wartsila - 9L20C - 1.800 kw (2.414 hp)-1000 rpm 1 x Caterpillar C32 - 970 kw (1,300 hp)-1800 rpm 2 x Caterpillar C18 - 550 kw (740 hp)-1800 rpm

TAGS:
Hybrid Yacht Design, Electric Yacht Design, Yacht Design, High End, Minimal, Luxurious, Explorer, Expedition Yacht, Mega Yacht

RESEARCH ABSTRACT:
Most of the research was about use of hybrid technologies in yachting industry. Collecting information and comparing propulsion systems, batteries, how much space the hybrid system requires on the same size built vessels took a solid 2 weeks of research. Additionally there were a lot to learn about how to keep design simplistic and minimalist without using less equipment on board. The most exciting part was learning new materials to use on exterior and interiors which are recycled and environment friendly.

CHALLENGE:
Trying to keep the design as minimal and functional as possible while holding the one of most luxurious experiences on board as high priority was very challenging. Also the lower deck portholes are arranged to write "Love" in morse code which was very challenging to align exterior design and interiors in the same time.

ADDED DATE:
2020-02-28 13:14:49

TEAM MEMBERS (1) :


IMAGE CREDITS:
Image#1: Creator / Designer Rumeysa Aris, Iconic Sx80, 2020.
Image#2: Creator / Designer Rumeysa Aris, Iconic Sx80, 2020.
Image#3: Creator / Designer Rumeysa Aris, Iconic Sx80, 2020.
Image#4: Creator / Designer Rumeysa Aris, Iconic Sx80, 2020.
Image#5: Creator / Designer Rumeysa Aris, Iconic Sx80, 2020.

PATENTS/COPYRIGHTS:
Copyrights belong to Rumeysa Aris, 2020.

Visit the following page to learn more: http://behance.net/rumeysaaris
VOTE FOR THIS DESIGN

VOTE FOR THIS ENTRY

CLIENT/STUDIO/BRAND DETAILS
NAME:
Azurite Yacht Design

PROFILE:
Azurite is a Yacht & Aircraft design company located in Sydney. Company's primary focus is bringing innovative design and styling into Yacht Design Industry. Most of the works are concept designs and documentation of concepts regarding to client's need. Azurite is started to create its on story last year in 2019. First offical project of the company is submitted as Iconic-SX80 as a hybrid super yacht concept design.

NOMINATION DETAILS

Iconic Sx80 Hybrid Yacht Design by Rumeysa Aris is a Nominee in Yacht and Marine Vessels Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Rumeysa Aris when results are announced.
AWARD DETAILS

Iconic Sx80 Hybrid Yacht Design by Rumeysa Aris is Winner in Yacht and Marine Vessels Design Category, 2019 - 2020.



· Press Members: Login or Register to request an exclusive interview with Rumeysa Aris.

· Click here to register inorder to view the profile and other works by Rumeysa Aris.
