Rope Terrace Cafe by The Grid Architects

Home > Winners > #100376




DESIGN DETAILS
DESIGN NAME:
Rope

PRIMARY FUNCTION:
Terrace Cafe

INSPIRATION:
strictures on time and budget directed the team to look at quick aesthetic solutions. with their inclination towards natural materials they explored and examined a close-to-nature palette which could be recycled, reused, cost effective, locally sourced and crafted and finalised upon jute rope a sustainable and eco-friendly material. designers chose the traditional Indian charpoy as the inspiration for developing space-modulating partitions and canopies that would define individual seating islands

UNIQUE PROPERTIES / PROJECT DESCRIPTION:
Jute rope which gives the cafe its name sees liberal usage owing to its eco-friendliness, this is a humble material which can take any form and transform a space, doesnot have thermal conductivity thus helps to maintain temperature, not absorbent and retains heat. Watered jute keeps the surrounding cool, easy handling, locally sourced and locally crafted - eco-friendly, sustainable, handled easily and cost effective

OPERATION / FLOW / INTERACTION:
upon entering the terrace, one is welcomed by happy colours and the blueness of the sky, the entrance wall is adorned by a wall mural depicting the logo of the cafe which has now become a selfie zone. Jute rope, recycled wooden table tops and flooring add to the ambience and help with the acoustics. An enclosed space with ac has been incorporated as a refuge from the city s harsh weather. The secluded terrace lends an experiential quality retaining scale within this volume. This then leads you to a pink spiral staircase which guides you to the upper terrace, a smoking zone, and a private zone for special celebrations.

PROJECT DURATION AND LOCATION:
the project started on 13-09-2018 ended on 28-10-2018 approximate;y 45 days location - Gandhinagar Ahmedabad Gujarat India

PRODUCTION / REALIZATION TECHNOLOGY:

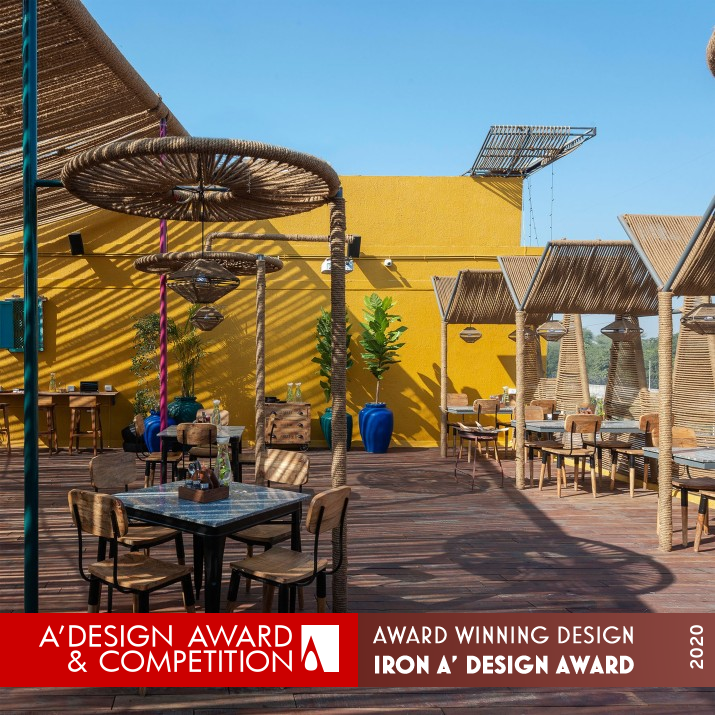

the open layout design and the striking use of materials and simplicity of form emerged from reinforcing the purpose of the humancentric design, building by-laws precluded the possibility of any kind of permanent or semi-permanent structure. After much discussion the designers chose the traditional Indian charpoy as the inspiration for developing space modulating partitions and canopies that would define individual seating islands. The canopy was created with the help of jute ropes, looped around pipes with specific angles such that the part canopy created a shadow for the rest of the terrace.

SPECIFICATIONS / TECHNICAL PROPERTIES:
the south-west facade features corrugated sheet as a protective layer from harsh sunlight, while rhythmically installed planks help channelize wind currents, plants help to maintain the moisture in the air and keep the environment cool. The flooring is recycled babool wood sourced from the forest department for very low cost. The wood was not directly screwed on the floors so as to not damage the waterproofing layer for the offices below. Flooring modules with aluminium frames were laid such that water flows easily below it. The artistically designed sit-outs offer a versatile way to create compositions that are easily adapted to their own.

TAGS:
#architecture, #architects, #thegridarchitects, #retail, #indiandesign, #indianarchitect , #indiadesignworld, #ropecafe, #rooftop, #design, #rope, #shadow, #sciagraphy, #light, #yellow, #recreationaldesign, #hospitality, #cafedesign, #cafe, #openspaces, #modern, #contemporary, #black, #arrival, #art, #designsolutions, #archdaily, #ahmedabad, #wovencanopy, #recycle, #reuse, #sustainable

RESEARCH ABSTRACT:
constraints posed by time intensified the architects proclivity for earth-friendly materials and processes, inclusion of local labour and local craft, material palette is dominated by recycled materials - jute rope, gum, arabic wood, corrugated sheets and ms, aluminium and natural stone and eco-friendly paint, jute eco-friendly, sustainable, handled easily, cost effective, does not have thermal conductivity, can take any form and transform a space. watered jute keeps the surrounding cool, south west facade- recycled corrugated sheet used to protect from harsh sunlight.

CHALLENGE:
the angles of the weaved canopy were such that the part canopy created a shadow for the rest of the terrace. While the craftsmen were tying the rope to the pipe it was easy to keep it straight at the narrow end but as the angle increased the length and weight of the rope increased so to keep it straight, they applied more pressure resulting in the pipe to bend. we realized this may damage the existing structure, so we let the rope be slightly loose. the sagging part created dramatic shape and shadows.

ADDED DATE:
2020-02-24 07:34:23

TEAM MEMBERS (2) :
mr. Snehal Suthar and ms. Bhadri Suthar

IMAGE CREDITS:
#1 Photographix India, 2018
#2 Photographix India, 2018
#3 Photographix India, 2018
#4 Photographix India, 2018
#5 Photographix India, 2018
video credits tHE gRID Architects

Visit the following page to learn more: http://bit.ly/2vdBp4s


CLIENT/STUDIO/BRAND DETAILS
NAME:
The Grid Architects

PROFILE:
The Grid Architects Is a Multidisciplinary Design Firm and Deeply Committed to Excellence. As Part of Our Contribution Towards Our Profession We Are Visiting Faculty and Members of Jury Panel at Various Architectural Institutes.Our Endeavour Has Always Been to Satisfy the Environmental and Meaningful Aesthetic Needs Simultaneously. For Us DESIGNING IS a SPIRITUAL JOURNEY.



NOMINATION DETAILS

Rope Terrace Cafe by The Grid Architects is a Nominee in Interior Space and Exhibition Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by The Grid Architects when results are announced.


AWARD DETAILS

Rope Terrace Cafe by The Grid Architects is Winner in Interior Space and Exhibition Design Category, 2019 - 2020.
