Chongqing Gaoke Group Ltd Office and Commercial by Aedas |
Home > Winners > #149508 |
 |
|
||||
| DESIGN DETAILS | |||||

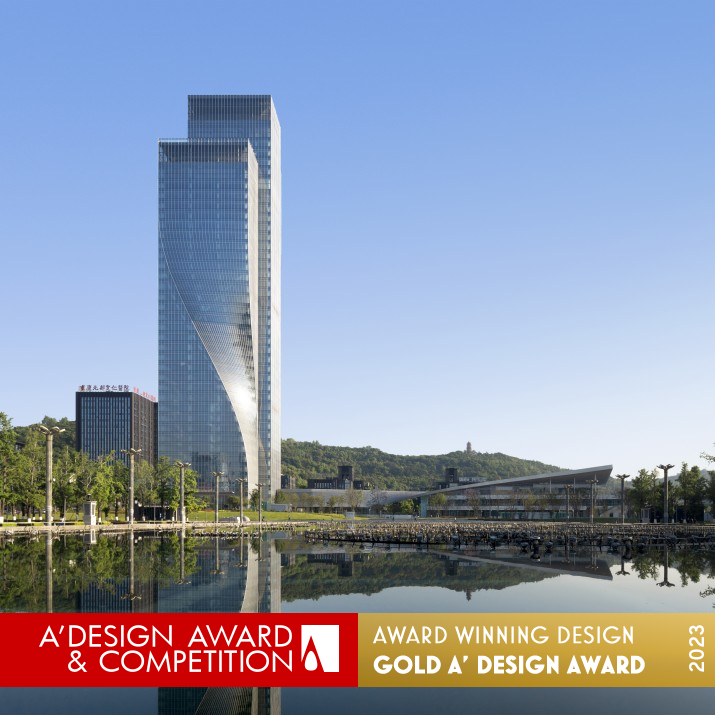

| DESIGN NAME: Chongqing Gaoke Group Ltd PRIMARY FUNCTION: Office and Commercial INSPIRATION: Inspired by the dancing aurora, the designer introduced an impressive façade design through bottom-to-top connections between northern and eastern sides. The ‘dance of light’ is characterized by the juxtaposition of rectilinear forms and tower façades with double curves. UNIQUE PROPERTIES / PROJECT DESCRIPTION: This 201M high office tower has the strong feature of Double-Curved Façade, which put it among one of “The Most Twisting Towers in the World”. OPERATION / FLOW / INTERACTION: - PROJECT DURATION AND LOCATION: Completion Year: 2022 Location: Chongqing, China FITS BEST INTO CATEGORY: Architecture, Building and Structure Design |
PRODUCTION / REALIZATION TECHNOLOGY: The unique twisting results in a high double-curvature ratio, which poses a major challenge for the overall façade system. The team and RFR joint hands to leverage the cold bend glass technique and BIM on complex geometry façade for a magic solution. From overall geometry analysis, façade component modelling & clash-checking, LOD400 detail component modelling, automotive data exporting and auditing, 3D BIM has been utilized throughout the entire façade design process. SPECIFICATIONS / TECHNICAL PROPERTIES: To achieve a very smooth transition of the glass façade, the design uses double-curved cold form glass instead of the usual or more common faceted method. The maximum twisting angle is up to 8.8 degrees per floor surpassing the existing super high-rise tower in the world by nearly 1.5 times (CTBUH Journal, 2016 Issue 3). The system of cold bend glass on the 3D frame façade component enables a maximum of 86mm in glass deviation between floors, realizing a record-breaking design in China. TAGS: Gaoke, Aedas, Most-Twisting, Double-Curve, Hyperbolic, Dance-of-light, Dancing-Aurora RESEARCH ABSTRACT: - CHALLENGE: - ADDED DATE: 2023-02-27 02:26:56 TEAM MEMBERS (1) : Ken Wai, Global Design Principal IMAGE CREDITS: Image #1: Arch-Exist Photography Image #2: Arch-Exist Photography Image #3: Arch-Exist Photography Image #4: Arch-Exist Photography Image #5: Arch-Exist Photography |
||||
| Visit the following page to learn more: https://bit.ly/3IBToDe | |||||
| CLIENT/STUDIO/BRAND DETAILS | |
 |
NAME: Chongqing Gaoke Group Co., Ltd. PROFILE: Chongqing Gaoke Group Co., Ltd., founded in 1997, located in Chongqing, is an enterprise mainly engaged in research and experimental development. It is an important force in the development and construction of the northern New Area. Focusing on the development and construction of industrial parks, the company has total assets of 9.6 billion yuan and owns 14 holding and equity enterprises. |
| AWARD DETAILS | |
 |
Chongqing Gaoke Group Ltd Office and Commercial by Aedas is Winner in Architecture, Building and Structure Design Category, 2022 - 2023.· Press Members: Login or Register to request an exclusive interview with Aedas. · Click here to register inorder to view the profile and other works by Aedas. |
