Smartstreets-Cyclepark™ Transformational bike parking by Chris Garcin and Andrew Farish (Team)

Home > Winners > #31588




DESIGN DETAILS
DESIGN NAME:
Smartstreets-Cyclepark™

PRIMARY FUNCTION:
Transformational bike parking

INSPIRATION:
Cities, campuses and other shared spaces often experience problems with random, unauthorized bicycle parking and bicycle theft. Cyclists will lock bikes as close as possible to a destination and will use a sign post, railing or lamp post in the absence of official bike parking facilities. This design improves official bike parking opportunities without adding clutter, by transforming existing sign posts into secure bike parking for two bicycles and stops bikes collapsing into trip hazards.

UNIQUE PROPERTIES / PROJECT DESCRIPTION:

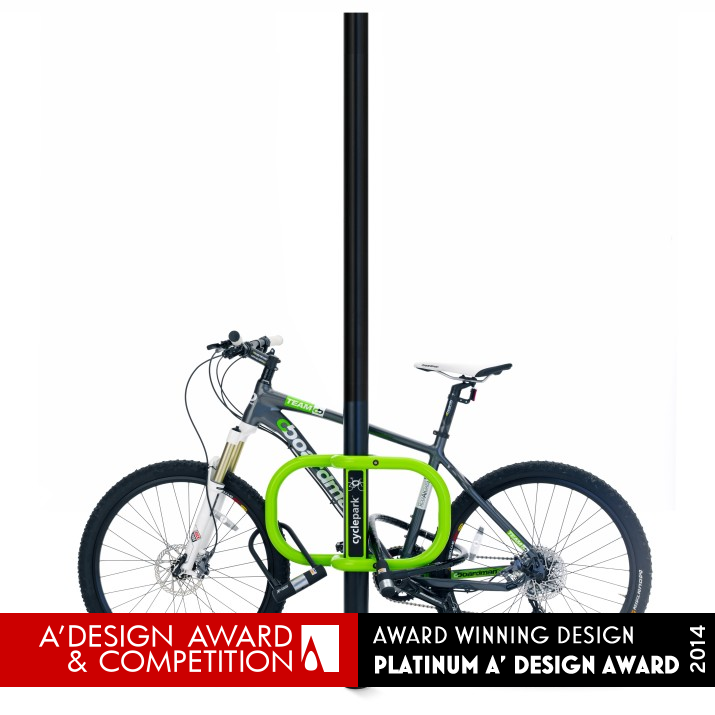

The Smartstreets-Cyclepark is made from two identical sub assemblies which bolt together securely around any size or shape of lamp column or sign post to facilitate secure bike parking either side of street sign posts and lamp posts. It fits in minutes enabling rapid improvement of bike parking facilities across urban areas and other shared spaces such as Univeristy campuses. Made from stainless steel tube it is durable, corrosion resistant and can be RAL colour matched to. The product is fully refurbishable and recyclable. Other versions are available for walls, railings and bollards.

OPERATION / FLOW / INTERACTION:
The Smartstreets-Cyclepark is intuitive in use as the cyclist quickly understands that the equipment enables them to secure the two wheels and the bike frame to the sign post. This prevents bicycles chained to sign posts being stolen by being lifted off the top and also prevents bicycles from blowing over or slipping down sign posts when knocked top create trip hazards.

PROJECT DURATION AND LOCATION:
Smartstreets-Cycleparks are being deployed across the UK and are favoured by Local Authorities who wish to increase bicycle parking facilities across the street scene quickly by transforming existing infrastructure rather than adding new obstacles on the street. The equipment does not require public consultations prior to installation and is simple and inexpensive to install as the pavement is not disturbed during installation.

FITS BEST INTO CATEGORY:
Social Design

PRODUCTION / REALIZATION TECHNOLOGY:
The design was developed to facilitate production of a wide variety of sizes and configurations of Cyclepark quickly without the need for expensive tooling. The manufacturing process requires tube bending and traditional sheet metal fabrication techniques. This enables very rapid development of new sizes which is important due to the diverse range of post, column, bollard and other street furniture sizes and shapes present in urban areas which the equipment is required to fit to.

SPECIFICATIONS / TECHNICAL PROPERTIES:
Width: 560mm Height: 340mm Depth: 150mm Powder coated for RAL colours or stainless steel finish Laser etched branding or generic/bespoke stickers on brace plates Security fixings make the equipment tamper resistant Material: Stainless steel components/fixings for strength/weather resistance Rounded components mean no sharp edges Streamlined profile suitable for even narrow streets Fits in minutes to existing infrastructure and design can be reconfigured and produced for unlimited shapes, sizes and styles of column/post infrastructure

TAGS:
Bicycle hoop, bike parking, cycle hoop, cyclehoop, bicycle parking, Smartstreets, Smartstreets-Cyclepark, Cyclepark, post mount bike parking, innovative bike parking, bike security, street furniture, bicycle parking, cyclehoops, cycle anchor

RESEARCH ABSTRACT:
Smartstreets consulted with over 200 Councils before finalizing on the optimal feature set. Multiple versions were prototyped and trialed in the design stages to identify the optimal solution for practicality, value for money and aesthetics. All Smartstreets products are extensively field tested before launch.

CHALLENGE:
The challenge was to create a product which would install quickly and easily to encourage cycling in urban areas. The objective was to transform existing sign posts and lamp columns to make cities more bicycle friendly by increasing bicycle security without adding clutter to the street scene. The solution needed to be suitable aesthetically for any infrastructure, traditional or contemporary - and had to be capable of being rapidly reconfigured for any size or style of column or bollard to offer a consistent facility

ADDED DATE:
2013-12-11 07:17:22

TEAM MEMBERS (2) :
Chris Garcin and Andrew Farish

IMAGE CREDITS:
Image 1. © Smartstreets Ltd 2013 (Andrew Farish, Chris Garcin)
Image 2. © Smartstreets Ltd 2013 (Andrew Farish, Chris Garcin)
Image 3. © Smartstreets Ltd 2013 (Andrew Farish, Chris Garcin)
Image 4. © Smartstreets Ltd 2013 (Andrew Farish, Chris Garcin)
Image 5. © Smartstreets Ltd 2013 (Andrew Farish, Chris Garcin)

Visit the following page to learn more: http://www.smartstreets.co.uk


CLIENT/STUDIO/BRAND DETAILS
NAME:
Cities, Councils and Municipalities

PROFILE:
Smartstreets clients are Local Authorities, Councils, Cities, Street Scene Managers, Town Centre Managers, Municipalities, University campuses, Architects, Town Planners, Highway Engineers, Cleansing contractors, Transport Authorities, Cycling Interest Groups, Business Parks and other private businesses who have an interest in improving the local environment quality and the provision of enhanced public services and facilities in urban areas.



NOMINATION DETAILS

Smartstreets-Cyclepark™ Transformational Bike Parking by Chris Garcin and Andrew Farish (team) is a Nominee in Street Furniture Design Category.

· This project is currently confidential as results have not been announced yet. Images and further details of the project is not available for public yet, please check back later. If you are the owner of this design, please login to view the images.

· Click here to register today inorder to be able to view the profile and other works by Chris Garcin and Andrew Farish (Team) when results are announced.


AWARD DETAILS

Smartstreets-Cyclepark™ Transformational Bike Parking by Chris Garcin and Andrew Farish (team) is Winner in Street Furniture Design Category, 2013 - 2014.
